Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 177715

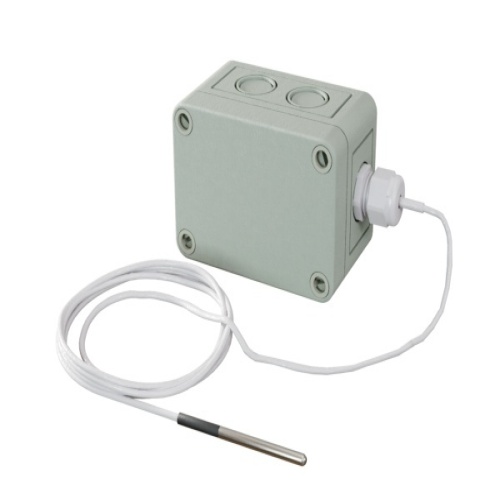

ACI 142515 A/100-LTS-4X-10' Freezer RTD
Normally In Stock
ACI 142515 100 Ohm RTD, 2" Freezer Probe 316SS, NEMA 4X Enclosure, 10'
Condition: New
Usually ships Same Day or Next Day$147.96
Sale Price
$123.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The ACI RTD Freezer Series features a 3/16” diameter stainless steel probe with a 10 Foot or 30 Foot, 3 Conductor, 24 AWG Plenum rated jacketed Teflon cable. The sensors in this series are manufactured using ACI’s proven encapsulation process to eliminate the effects of moisture upon the sensors. The sensor is designed to be used in Pharmaceutical, Liquid Nitrogen, Freezers, Refrigerators and Hydronic applications where a remote sensor is required due to the extreme temperature ranges and presence of ice and moisture. An optional “-GD” galvanized or “-4x” NEMA 4X weather proof enclosure and NIST Certificates are available as referenced in the ordering grid on the product data sheet. The Freezer RTD sensors can be used with any of the Single or Triple Point Glycol Kits for use in applications where a Thermal Buffer (slower) response time is desired. Please contact ACI for more information regarding this sensor or to discuss your application in further detail. Other options may be available upon request. Applications: Pharmaceutical, Liquid Nitrogen, Refrigerators, Freezers, Hydronic Heating, Remote Sensor Applications
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Type
Freezer
Features
The ACI RTD Freezer Series features a 4.76 mm (3/16 in) diameter stainless steel probe with a 3.05 m (10 ft) or 9.14 m (30 ft), 3 Conductor, 0.51 mm (24 AWG) Plenum rated jacketed Teflon cable
The sensors in this series are manufactured using ACI’s proven encapsulation process to eliminate the effects of moisture upon the sensors
The sensor is designed to be used in Pharmaceutical, Liquid Nitrogen, Freezers, Refrigerators and Hydronic applications where a remote sensor is required due to the extreme temperature ranges and presence of ice and moisture
An optional “-GD” galvanized or “-4x” NEMA 4X weather proof enclosure and NIST Certificates are available as referenced in the ordering grid on the product data sheet
The Freezer RTD sensors can be used with any of the Single or Triple Point Thermal Buffers for when slower response time is desired.
Code: 177715
ACI 142515 A/100-LTS-4X-10' Freezer RTD
$147.96
Sale Price
$123.30
