Code: 176385
ACI 133694 A/1K-3W-PO-4"-20'CL2P 3 Wire,1K Ohm
Normally In Stock

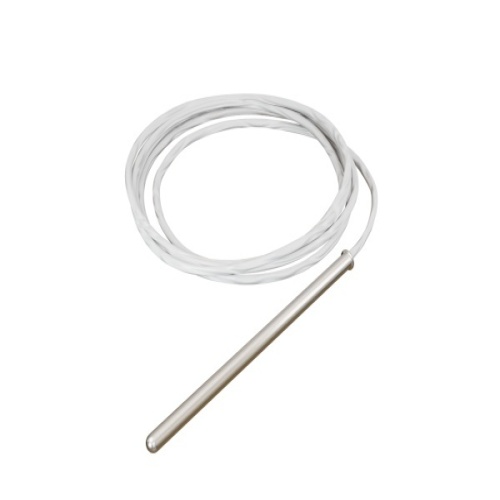

ACI 133694 1,000 Ohm (Three Wires) RTD, Probe Only, 4", 20' Plenum Cable
Condition: New
Usually ships Same Day or Next Day$63.72
Sale Price
$53.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
ACI 133694 1,000 Ohm (Three Wires) RTD, Probe Only, 4", 20' Plenum Cable
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Type
3 Wire-1K Ohm
Features

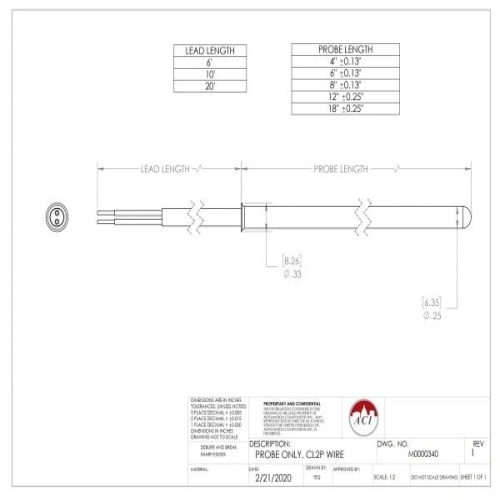

The ACI Platinum Probe Only Series features a ¼” diameter stainless steel probe with two or three, 14 or 24 inch, 22 AWG Etched Teflon colored lead wires to differentiate the different sensor types
The three-wire “-3W” option should be ordered if using with a 3-Wire temperature transmitter or sensor configuration on your building management system or PLC (Programmable Logic Controller)
The purpose of the 3rd wire is to compensate for any external lead wire resistance that will affect your sensor output
ACI recommends the use of an 18 AWG lead wires to reduce the external lead wire resistance when using a Platinum RTD sensor
The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture on the sensors and to increase the thermal response time using our high quality, thermally conductive epoxy
The probe is designed to be used in duct and immersion applications when used with the proper length thermowell
Optional lead length, cable types and NIST Certificates are available as referenced in the ordering grid on the Product Data Sheet.
