Code: 176351

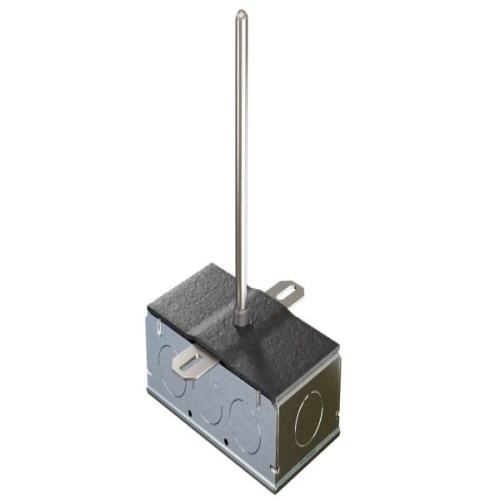

ACI 133390 A/TTM1K-D-6"-4-GD Transmitter,1K Ohm Duct RTD
Normally In Stock
ACI 133390 Transmitter w/ 1,000 Ohm RTD (NIST Cert), Duct, 6", Galvanized Enclosure, 4-20mA Output
Condition: New
Backordered with 10-12 week lead time$198.72
Sale Price
$165.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ACI Transmitter Duct Series features a two-wire, 4 to 20 mA loop powered output signal with an optional 3-Wire voltage output signal available. All transmitters include Zero and Span adjustments for field calibration and are calibrated using NIST Certi ed Calibration equipment.
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Mounting
Duct
(Instrument-Sensor) Type
Transmitter-1K Ohm
Features
The ACI Transmitter Duct Series features a two-wire, 4 to 20 mA loop powered output signal with an optional 3-Wire voltage output signal available
All transmitters include Zero and Span adjustments for field calibration and are calibrated using NIST Certified Calibration equipment
ACI recommends the use of an 18 to 22 AWG shielded cable for all temperature transmitter installations to help eliminate the possibility of noise being introduced onto the signal lines
The sensor assemblies are manufactured using colored Etched Teflon lead wires and ACI’s proven double encapsulation process to eliminate the effects of moisture on the sensors as well as increased response times using our high quality, thermally conductive epoxy
The duct sensors include a foam pad to properly seal the duct and limit vibration once installed
Optional NEMA/IP rated weather proof enclosures are available as specified on the back of the product data sheet
For best accuracy, ACI recommends the use of the A/TTM Series Matched transmitters with 3 or 5 Point NIST Calibration Certificate, since they include a second calibration step in which the RTD and transmitter are calibrated together as a system.
