Code: 176157

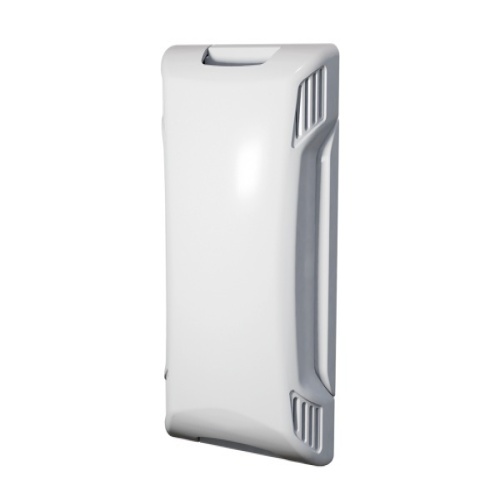

ACI 131872 A/TT1K-R2-1 RTD
Normally In Stock
ACI 131872 Transmitter w/ 1,000 Ohm RTD, Room (R2), 1-5VDC Output
Condition: New
Backordered with 10-12 week lead time$112.32
Sale Price
$93.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
ACI 131872 Transmitter w/ 1,000 Ohm RTD, Room (R2), 1-5VDC Output
Specifications
Manufacturer
ACI
Component
RTD
Features
The ACI Transmitter Room Series features a two-wire, 4 to 20 mA loop powered output with optional 3-Wire voltage output signals available
All transmitters include Zero and Span adjustments for field calibration and are calibrated using NIST Certified Calibration equipment
ACI recommends the use of an 18 to 22 AWG shielded cable for all temperature transmitter installations to reduce the chances of noise being introduced onto the signal lines
The room transmitters are designed to be mounted over a standard single gang junction box or hole in the wall
For best accuracy, ACI recommends the use of the A/TTM Series Matched transmitters with 3 or 5 Point NIST Calibration Certificate, since they include a second calibration step in which the RTD and transmitter are calibrated together as a system
A/TTM series matched transmitters include a foam pad to reduce the effects of self-heating from the transmitter and thermal drafts from within the wall
Optional Set Point, Override and Loop Powered LCD Display.
