ACI 130140 PT 3" Pitot Tube Pressure
Normally In Stock
Code: 175931

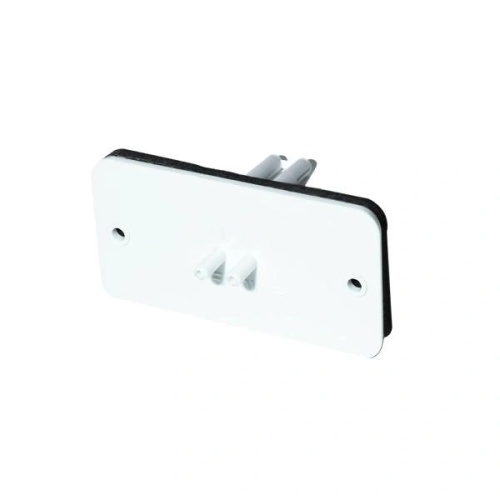

ACI 130140 Total Pressure Pitot Tube with Foam Gasket, 3"
Condition: New
Usually ships Same Day or Next Day$20.74
Sale Price
$17.28
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ACI carries a full line of differential, static, and velocity pitot tubes. The PT is designed to sense the differential inlet pressure in the inlet section of VAV and Fan Terminal Boxes. They can also be used to measure the differential pressure at any other location in the main or branch duct systems. PT 3" is a Differential Pitot Tube w/1 set of sensing points. Other lengths also available:
Specifications
Manufacturer
ACI
Component
Pressure
(Instrument-Sensor) Type
Pitot Tube
Features
ACI carries a full line of di erential, static, and velocity ( ow) pitot tubes
The PT Series is designed to sense air ow velocity in VAV and other small ducts found in many of today’s HVAC Systems
When selecting the proper PT series Pitot Tube, you want to make sure that the insertion length of the pitot tube is long enough to reach the midpoint of the duct and at least 10 straight duct diameters upstream and downstream for best results
Note that the Pitot Tube should also be mounted such that the arrow on the pitot tube is facing in the direction of the air ow
And that the tube is kept free of dirt and debris
A foam pad is adhered to mounting plate to seal the installation opening and to reduce vibrations.
