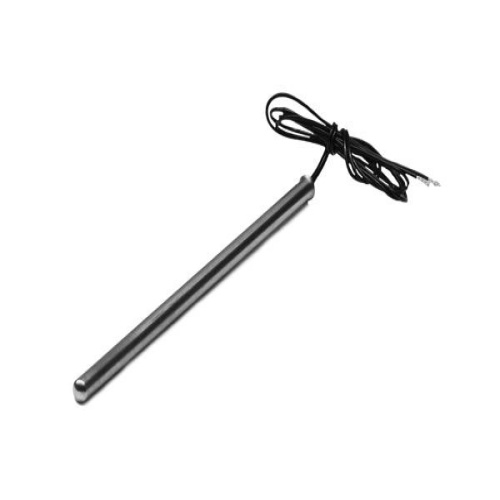

ACI 126690 A/1K-2W-PO-6" Probe,2 Wire,1K Ohm RTD
Normally In Stock
Code: 175713
ACI 126690 1,000 Ohm (Two Wires) RTD, Probe Only, 6"
Condition: New
Usually ships Same Day or Next Day$26.46
Sale Price
$22.05
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ACI 126690 1,000 Ohm (Two Wires) RTD, Probe Only, 6"
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Composition
Platinum
(Instrument-Sensor) Type
Probe-2 Wire-1K Ohm
Features
The ACI Platinum Probe Only Series features a ¼” diameter stainless steel probe with twoor three, 14 or 24 inch, 22 AWG Etched Teflon colored lead wires to differentiate the differentsensor types
The three-wire “-3W” option should be ordered if using with a 3-Wire temperaturetransmitter or sensor configuration on your building management system or PLC (ProgrammableLogic Controller)
The purpose of the 3rd wire is to compensate for any external lead wireresistance that will affect your sensor output
ACI recommends the use of an 18 AWG lead wiresto reduce the external lead wire resistance when using a Platinum RTD sensor
The sensors inthis series are manufactured using ACI’s proven double encapsulation process to eliminate theeffects of moisture on the sensors and to increase the thermal response time using our highquality, thermally conductive epoxy
The probe is designed to be used in duct and immersion applications when used with the proper lengththermowell
Optional lead length, cable types and NIST Certificates are available as referenced in the ordering grid on the Product Data Sheet.
