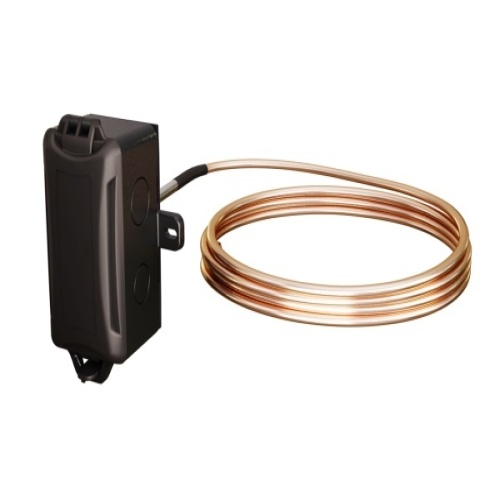

The ACI Nickel Copper Averaging Series features a bendable copper sensing element with twocolored lead wires to differentiate the different sensor types

The sensors in this series aremanufactured with multiple sensing points determined by the length of the sensing element.Averaging sensors provide a more accurate average temperature of the air inside large ductswhen compared to that of a single point sensor

Each of the elements is hermetically sealed toprevent moisture intrusion and includes an integrated foam pad to seal the duct and dampenvibrations

The benefits of copper sensing elements are that they have improved thermalconductivity and higher corrosion resistance when compared to similar aluminum style sensors.Copper has also been proven to provide an additional antibacterial effect to many of theairborne contaminants, molds and bacteria found in duct systems

Sensor lengths should beselected based upon the dimensional area of your duct

ACI’s standard enclosures include the“-GD” Galvanized or “-PB” plastic box with hinged cover

Each unit includes nylon wire ties andmounts for mounting

Optional copper capillary and universal mounting clips, NEMA/IP rated weather proof enclosures and NIST Certificatesare also available.
