Code: 174775
ACI 120405 A/1K-3W-LT-DO-4" 3 Wire,1K Ohm
Normally In Stock
ACI 120405 1,000 Ohm (Three Wires) RTD, Low Temperature Duct, Without Box, 4" 316SS
Condition: New
Usually ships Same Day or Next Day$158.22
Sale Price
$131.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

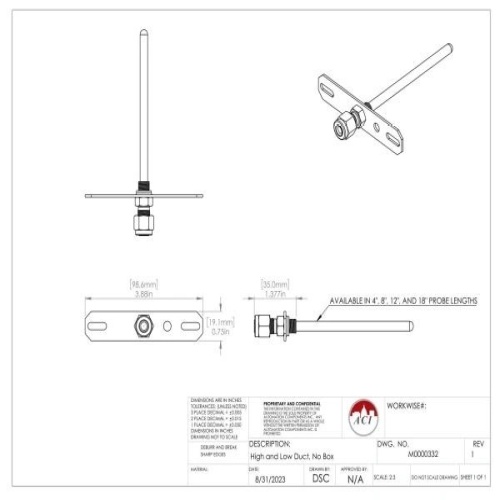

The standard duct without box configuration has a mounting flange for quick installation and etched-teflon leads. The sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. Additional options include: plenum rated cable and quick connects for direct termination to male VAV-Controller inputs.
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Type
3 Wire-1K Ohm
Features
The ACI Low Temperature Duct Series sensors and transmitters are a single point duct sensor featuring a three wire RTD sensor assembly using Teflon Lead wires and a 316 Series stainless steel probe
The three wire sensors can be used with a two wire transmitter by connecting the two (Red) colored wires to one of the RTD Terminal blocks with the third wire (White) wire going to the second RTD Terminal block
The purpose of the third wire is to compensate for external lead wire resistance that will affect the accuracy of your sensor output when using with a three wire temperature transmitter or sensor configuration on your Building Management System or PLC (Programmable Logic Controller
ACI recommends the use of 18 AWG lead wires to reduce the external lead wire resistance when using a Platinum RTD
The operating specifications are for both the sensor and transmitter as designated in the specification table
Standard enclosure options include the “-GD” Galvanized or “-BB” Aluminum weather proof enclosure
NIST Certificates are available for all of the configurations listed in the ordering grid on the back of the product data sheet
For best accuracy, ACI recommends the use of the TTM100 or TTM1K Series Matched transmitters since they include a second calibration step in which the RTD and transmitter are calibrated together as a system, in order to remove most of the sensor error over the calibrated temperature span of the transmitter.
