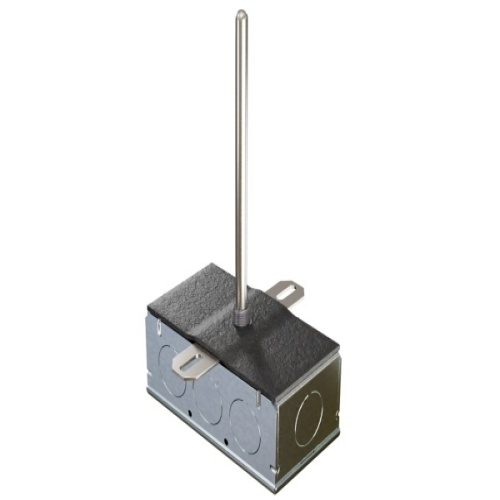

ACI 119569 A/1K-3W-RA-18"-GD Probe,3 Wire,1K Ohm RTD
Normally In Stock
Code: 174530
ACI 119569 1,000 Ohm (Three Wires) RTD, Rigid Probe Averaging, 18", Galvanized Enclosure
Condition: New
Usually ships Same Day or Next Day$173.34
Sale Price
$144.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ACI Platinum Rigid Averaging features a stainless steel probe with Etched Teflon colored lead wires to differentiate the sensor types. The three-wire “-3W” option should be ordered when using with a 3-Wire temperature transmitter or sensor configuration on your building management system or PLC (Programmable Logic Controller). The purpose of the 3
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Composition
Platinum
(Instrument-Sensor) Type
Probe-3 Wire-1K Ohm
Features
The ACI Platinum Rigid Averaging features a stainless steel probe with Etched Teon coloredlead wires to dierentiate the dierent sensor types
The three-wire “-3W” option should beordered when using with a 3-Wire temperature transmitter or sensor conguration on yourbuilding management system or PLC (Programmable Logic Controller)
The purpose of the 3rdwire is to compensate for external lead wire resistance that aects the accuracy of your sensoroutput
ACI recommends the use of 18 AWG lead wires to reduce external lead wire resistancewhen using a Platinum RTD
The rigid averaging sensors include a continuous sensing element,which covers the entire length of the probe
This allows for a better average temperature overthe entire length of the sensor when compared to that of a single point duct sensor ormulti-point averaging sensor
These sensors are hermetically sealed with epoxy to ensure thatmoisture and other contaminants can’t aect the sensing element
The Rigid Averaging sensoralso includes a foam pad to seal the duct and dampen vibrations once installed
The sensor length should be determined by the width or diameterof your duct such that the sensor covers most of the internal width or height of the duct
Our standard enclosure options include the “-GD”galvanized or “-PB” plastic duct enclosure with hinged cover
On larger ducts, our Platinum bendable copper averaging sensor can be used for largerducts and increased coverage area
This series can be ordered with optional NEMA/IP rated weather proof enclosures and NIST Certicates asreferenced in the ordering grid.
