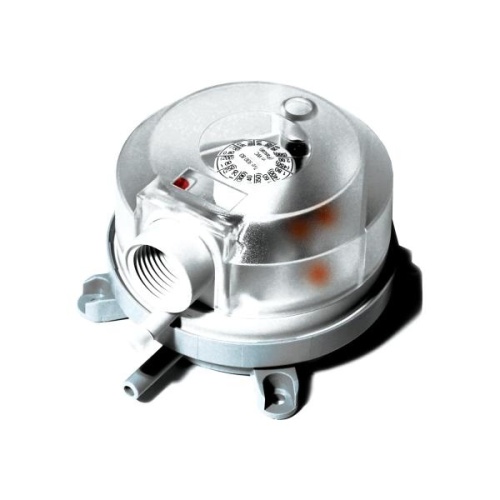

ACI 106255 DBL-205E Switch Pressure
Normally In Stock
Code: 174122
ACI 106255 Differential Pressure Switch, 2 to 10.0 inWC, SPDT, Auto Reset, NEMA 3 Enclosure
Condition: New
Usually ships Same Day or Next Day$62.21
Sale Price
$51.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The DBL Series Differential Pressure Switches are adjustable vacuum, pressure and differential pressure switches designed for both HVAC and Energy Management Applications. Due to the ease of calibration and adjustment procedures, these units will save you both installation time and money. The
Specifications
Manufacturer
ACI
Component
Pressure
(Instrument-Sensor) Type
Switch
Features
The DBL Series Differential Pressure Switches are general purpose pressure switches designed for both HVAC and Energy Management applications
These pressure switches can be used to sense positive, negative, or differential air pressures when used in conjunction with an DBZ-06, A/SPT or A/VPT Series sampling tube
The NEMA 3 (IP54) rated weather proof plastic enclosure contains an On/Off, single stage micro switch and two pressure chambers separated by a silicone diaphragm
The enclosure also contains a ½” conduit knockout and guards against accidental contact with the live switch terminal screws as well as the factory calibrated linear set point adjusting knob
The set point can be adjusted without comparing to a field gauge, manometer or magnehelic.
