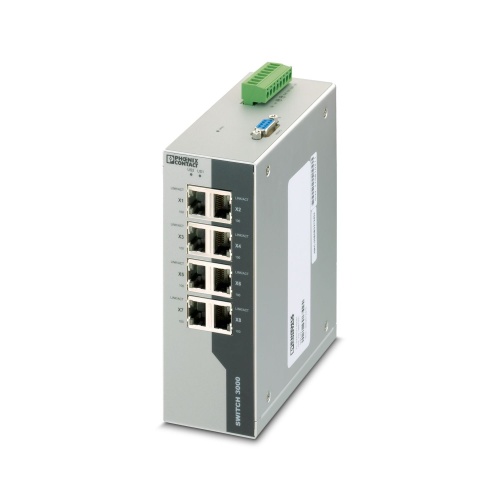

Phoenix Contact 2891031 Industrial Ethernet Switch FL SWITCH 3008
Normally In Stock
Code: 14120

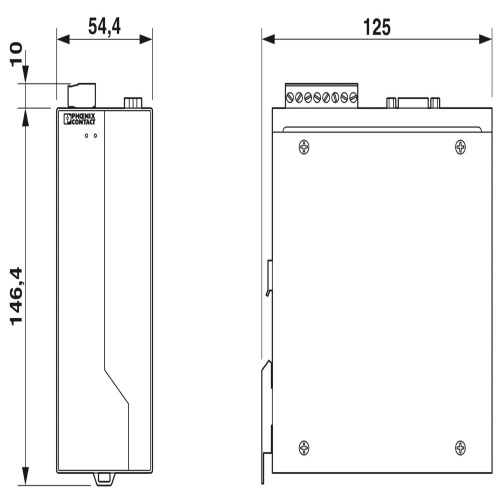

Phoenix Contact 2891031 FL SWITCH 3008 Managed Industrial Ethernet Switch with 8 Fast (100 Mbps) RJ45 Copper ports. Din rail mount. Aluminum housing with IP20 protection. 54.4 mm x 146.4 mm x 125 mm (HxWxD)
Condition: New
Usually ships Same Day or Next Day$938.18
Sale Price
$781.82
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2891031 The network device is an Ethernet switch with eight RJ45 ports that supports speeds of up to 10/100 Mbps, operating within a wide temperature range of -10°C to +60°C.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 7 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 8 Fast Copper RJ45 Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Voltage Input
48 VDC
Switch Power Connection
Wire Terminals
Switch Voltage Input
12 VDC
Switch Temperature Range
14F To 140F
Switch Management
Managed
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Total Ports
8
Switch Copper Ports Fast (100 Mbps)
8 RJ45 Ports
Switch All Ports
8 Fast Copper RJ45
Switch Model
Phoenix FL Switch
Manufacturer
Phoenix Contact
Component
Managed Ethernet Switch
Features
RJ45 ports support a transmission speed of 10/100 Mbps
Fiber-optic ports support 100 Mbps
-40 to 75°C and -10 to 60°C ambient temperature versions
Extensive web diagnostics with configurable LED and remote alarm contacts
Security options with cable locking
Secure web-based and SNMP-based management
Unique cleanup function hides unused configuration pages, reducing complexity, maintenance and startup times
Auto negotiation and autocrossing detection simplifies installation and setup
Downloads
Phoenix 2891031 Application Note English.pdfPhoenix 2891031 CAD data International.dxfPhoenix 2891031 CAD data International.pdfPhoenix 2891031 CAD data International.stpPhoenix 2891031 CAD Drawing.zipPhoenix 2891031 Data Sheet English.pdfPhoenix 2891031 Firmeware Update FL_SWITCH_3000_4000_v1_21.zipPhoenix 2891031 Firmware English-2.pdfPhoenix 2891031 Firmware English-3.pdfPhoenix 2891031 Firmware English.pdfPhoenix 2891031 Firmware International.zipPhoenix 2891031 Manual English.pdfPhoenix 2891031 Manufacturers declaration English.pdfPhoenix 2891031 Manufacturers declaration International.pdfPhoenix 2891031 Package Slip International.pdfPhoenix 2891031 Package Slip.pdfPhoenix 2891031 Software English.exePhoenix 2891031 Software International.zipPhoenix 2891031 Spec Sheet.pdfPhoenix 2891031 Tender Text English.zipPhoenix 2891031 User Manual.pdfPhoenix 2891031 Various English-2.pdfPhoenix 2891031 Various English.pdf
