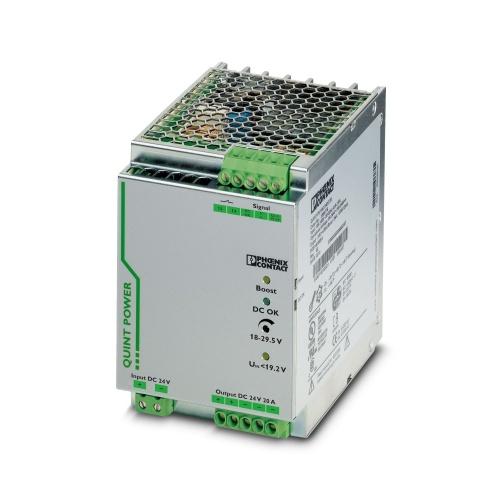

Phoenix Contact 2320102 DC/DC converter QUINT-PS/24DC/24DC/20
Normally In Stock
Code: 12118
QUINT-PS/24DC/24DC/20 Phoenix Contact 2320102 DCDC Converter 24V24V 20A QUINT
Condition: New
Usually ships Same Day or Next Day$928.30
Sale Price
$773.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2320102 A primary-switched QUINT DC/DC converter designed for installation on a DIN rail, equipped with SFB technology that allows for selective fuse breaking. The device accepts a 24V DC input and provides a stable 24V DC output of up to 20A.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
24 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
20 Amp
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
16-20 Amp
Power Supply Voltage Input Range
18 VDC - 32 VDC
Component
DC-DC
Features
Support conversion to various voltage levels
Preventive function monitoring indicates critical operating states before errors occur
Constant voltage: output voltage regenerated even at the end of long cables
Reliable starting of difficult loads, thanks to the static POWER BOOST power reserve with up to 125% nominal current permanently
Electrical isolation: for setting up independent supply systems
Downloads
Phoenix 2320102 CAD data International.dxfPhoenix 2320102 CAD data International.pdfPhoenix 2320102 CAD data International.stpPhoenix 2320102 CAD Drawing.zipPhoenix 2320102 Data Sheet English.pdfPhoenix 2320102 Installation Guide.pdfPhoenix 2320102 Manufacturers declaration English.pdfPhoenix 2320102 Manufacturers declaration International-2.pdfPhoenix 2320102 Manufacturers declaration International-3.pdfPhoenix 2320102 Manufacturers declaration International-4.pdfPhoenix 2320102 Manufacturers declaration International.pdfPhoenix 2320102 Product Information English.pdfPhoenix 2320102 Spec Sheet.pdfPhoenix 2320102 Tender Text English.zipPhoenix 2320102 Various English.pdfPhoenix 2320102 Various English.wmv
