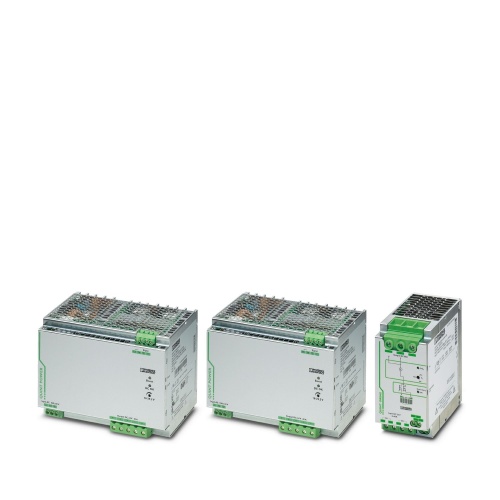

Phoenix Contact 2866789 Power supply QUINT-PS/1AC/24DC/40
Normally In Stock
Code: 669
Phoenix Contact QUINT-PS/1AC/24DC/40. 24 VDC output 40 Amp Premium Power Supply(Class 1 Div 2) with input voltage 85-240 Vac or 90-350 Vdc. Temperature range of -13 F to 158 F. Din rail mount Screw Connection.
Condition: New
Usually ships Same Day or Next Day$1427.53
Sale Price
$1189.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

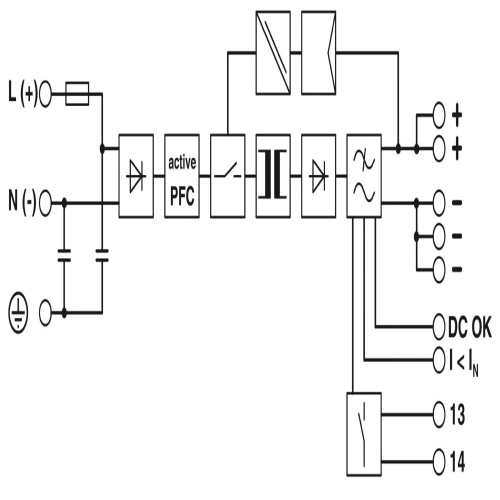

Phoenix Contact 2866789 The QUINT POWER power supply unit features a primary-switched design and can be mounted on a DIN rail using screw connections. It also incorporates the SFB Technology, which includes selective fuse breaking capabilities, and is designed to handle single-phase input sources while providing a stable 24V DC output of up to 40 amps.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
24 VDC
Power Supply Watts
960 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
40 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
31-40 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Power Supply Voltage Input Range
90 VDC - 350 VDC
Features
Preventive function monitoring
Fast tripping of standard circuit breakers with dynamic power reserve SFB (selective fuse breaking) technology with up to 6 times the nominal current for 12 ms
For superior system availability
Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently
Downloads
Phoenix 2866789 CAD data International.dxfPhoenix 2866789 CAD data International.pdfPhoenix 2866789 CAD data International.stpPhoenix 2866789 CAD Drawing.dxfPhoenix 2866789 Data Sheet English.pdfPhoenix 2866789 Manufacturers declaration English.pdfPhoenix 2866789 Manufacturers declaration International-2.pdfPhoenix 2866789 Manufacturers declaration International-3.pdfPhoenix 2866789 Manufacturers declaration International.pdfPhoenix 2866789 Package Slip International.pdfPhoenix 2866789 Product Information English.pdfPhoenix 2866789 Spec Sheet.pdfPhoenix 2866789 Tender Text English.zipPhoenix 2866789 User Manual.pdfPhoenix 2866789 Various English.pdfPhoenix 2866789 Various English.wmv
