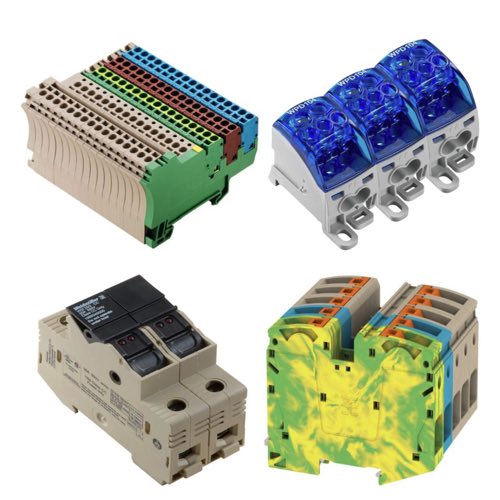

Weidmuller Terminal Blocks
Weidmüller terminal blocks are crafted with precision for industrial use in automation and power distribution. They are surprisingly versatile; for their vast array of components, Weidmüller guarantees high performance at a large number of current and voltage levels. When you buy Weidmüller terminal blocks, you get powerful connection technology designed to stand the test of time.
Weidmüller terminal blocks are designed to be both functional and efficient. They offer a wide range of modular terminal blocks that allow you to tailor your project just the way you want. That means you can achieve optimal connection density while saving precious panel real estate.
Weidmüller terminal blocks are designed with SNAP IN® technology which enables flexible wires to be plugged in directly, even without wire-end ferrules. You just insert stripped fine-stranded conductors into the connection point, and an audible click will confirm that the connection has been completed. This is exactly what is needed to accelerate the installation process and save valuable installation time.
FAQs
Are Weidmüller terminal blocks mounted easily on DIN rail and are accessories such as end brackets available to order?
Yes, Weidmüller terminal blocks are designed for easy DIN rail mounting, and accessories such as end brackets, jumpers, and marking tags are readily available to order for secure and organized installations.
What conductor cross sections are Weidmüller terminal blocks designed for?
Weidmüller terminal blocks are designed to accommodate a wide range of conductor cross sections, typically from 0.14 mm² to 240 mm², depending on the terminal block type and application requirements.
What configuration of Weidmüller terminal blocks saves the most space in control cabinets?
Multi-level Weidmüller terminal blocks save the most space in control cabinets by allowing multiple connections within a single compact terminal housing.
What tools are required to use Weidmüller terminal blocks?
Most Weidmüller terminal blocks require only a standard flathead or Phillips screwdriver for screw connections, while push-in and tension clamp types often need no tools at all for wiring or maintenance.
Can customers save time and money by choosing Weidmüller terminal blocks?
Yes, customers can save time and money by choosing Weidmüller terminal blocks because their modular design, quick connection technology, and easy DIN rail installation reduce wiring effort, maintenance time, and overall system costs.
Terminal Blocks: The Top 5 Things You Must Know
Is there a plan in place?
Make sure to have a proper plan in place for a specific application. With such a wide variety of terminal blocks available, it is important to use the correct types for various circuits. If the wrong types of terminal blocks are used, it could cause many issues, including possibly being very dangerous.
Is a disconnect necessary?
The most basic types of terminal blocks, simply act as a junction point. This allows current to pass through with nothing to stop it. However, if there is a need to stop current from flowing, some kind of disconnect will be required. There are a variety of different types of terminal blocks that have manual disconnects that can be used for this very purpose.
What about protection?
In many cases, devices connected to terminal blocks need protection. Terminal blocks that have a place for a fuses to be connected would be the ideal choice.
Is space limited?
In situations where there is very little room to accommodate the amount of IO that is need for a specific scenario, multi-level terminal blocks can wire multiple points or circuits in much less space than using single level terminal blocks.
Is grounding necessary?
When doing any kind of electrical wiring, proper grounding is essential to make sure all components in that circuit function properly. There are several different styles of grounding terminal blocks to meet different scenarios.
