Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 208485

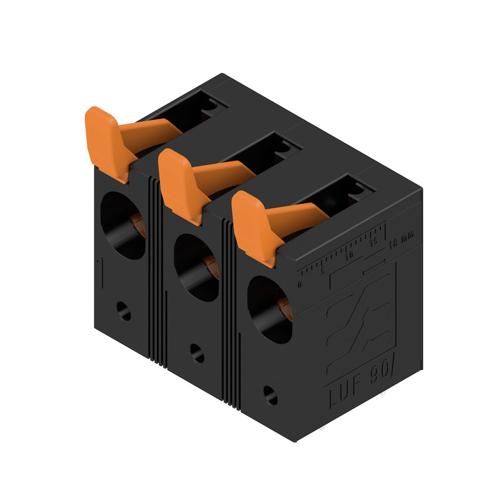

Weidmuller 2491900000 PCB Terminal - 16 mm² 61 Amp
Normally In Stock
Weidmuller 2491900000 - 61 Amp - 600 V - Push In With Actuator - Black - 16 mm² Cross-section (MUST BUY IN PACKS OF 30)
Condition: New
Usually ships within 4 weeks. Call for ship time.$23.82
Sale Price
$19.85
MUST BUY IN PACKS OF 30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Weidmuller 2491900000 - Weidmuller offers a comprehensive range of PCB Terminals and Connectors, including the OMNIMATE Signal and OMNIMATE Power series, designed for industrial applications with a focus on signal processing and power electronics. These terminal blocks, plug-in connectors, and panel feedthrough terminal blocks provide efficient and reliable solutions. The OMNIMATE Power series is specifically optimized for high-current applications, supporting currents up to 232 A and voltages up to 1000 V (IEC) or 230 A at 600 V (UL). With a strong emphasis on application-oriented design, these components enable efficient production and ensure reliable performance in a variety of industrial applications. Trust Weidmuller's PCB Terminals and Connectors for high-quality, dependable solutions in signal processing and power electronics.
Specifications
Terminal Block Voltage Rating
600 Volt
Terminal Block Component Color
Black
Terminal Block Amperage
61 Amp
Manufacturer
Weidmuller
Component
PCB Terminal Block
Terminal Block Connection Method
Push In With Actuator
Features
The sturdy, direct connection for extreme current and voltage requirements in all power electronics applications such as solar inverters, frequency converters, servo-controllers and power supplies.
Downloads
Engineering Data - CAD data -- PV Next Schematic Diagram 2in1.pdfTechnical Documentation - Customer Drawing.pdfUser Documentation - Assembly_instruction_Montageanleitung_LLFS_LUFS_EN_DE.pdfUser Documentation - Assembly_instruction_Montageanleitung_LLF_LUF_EN_DE.pdfWhite paper - 05_PV-Fact-Sheet-CB-Connection_EN.pdf.pdfWhite paper - 05_PV-Fact-Sheet-CB-Richtig-verbinden_DE.pdf.pdfWhite paper - 06_PV-Fact-Sheet-CB-Combining-PV-strings_EN.pdf.pdfWhite paper - 06_PV-Fact-Sheet-CB-PV-Strings-kombinieren-DE.pdf.pdfWhite paper - Fact Sheet DE CB PV NEXT.pdfWhite paper - Fact Sheet DE PV Wie man die Lebensdauer eines GAK verlängert.pdfWhite paper - Fact Sheet DE PV CB Wann Sicherungen zu installieren sind.pdfWhite paper - Fact Sheet DE PV CB Wie man Gebäude gegen Blitzeinschläge schützt.pdfWhite paper - Fact Sheet EN CB PV NEXT.pdfWhite paper - Fact Sheet EN PV CB When DC fuses are mandatory to install.pdfWhite paper - Fact Sheet EN PV How to extend the life time of a Combiner Box.pdfWhite paper - Fact Sheet EN PV How to protect buildings against lightning strikes.pdf
