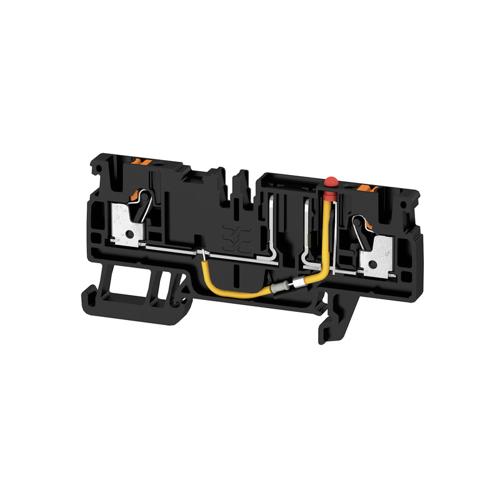

Weidmuller 2466610000 Fuse Terminal Block
Normally In Stock
Code: 208260
Weidmuller 2466610000 - Push-in Connection - 10 Amp - 2 Connections - 12 Volt - Black - 5.1 mm Wide (MUST BUY IN PACKS OF 50)
Condition: New
Usually ships within 4 weeks. Call for ship time.$10.48
Sale Price
$8.73
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Weidmuller 2466610000 - Introducing Weidmuller Terminal Blocks, the versatile and reliable solution for your electrical connection needs. Designed with precision and built to last, these terminal blocks offer a robust and secure connection for various applications. With their modular design and flexibility, Weidmuller terminal blocks provide easy and efficient wiring, making them ideal for industrial automation, control panels, and electrical installations. Engineered for optimal performance, these terminal blocks ensure excellent conductivity, reducing the risk of signal loss and downtime.
Specifications
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Amperage
10 Amp
Terminal Block Width
5.1 mm
Terminal Block Voltage Rating
12 Volt
Component
Terminal Block
Sub Component
Fuse Terminal Block
Manufacturer
Weidmuller
Terminal Block Indication
LED
Features

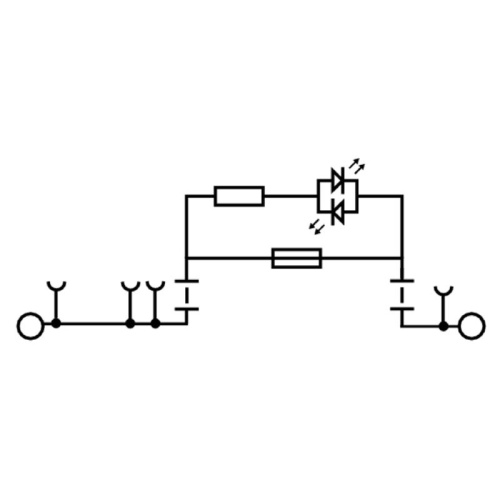

In some applications it is useful to protect the feed through connection with a separate fuse.
Fuse terminal blocks are made up of one terminal block bottom section with a fuse insertion carrier.

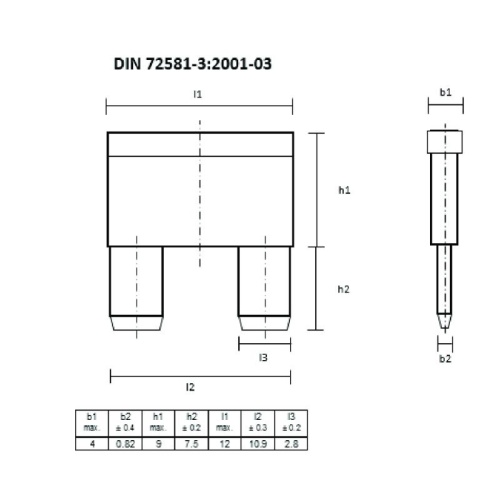

The fuses vary from pivoting fuse levers and pluggable fuse holders to screwable closures and flat plug-in fuses.
