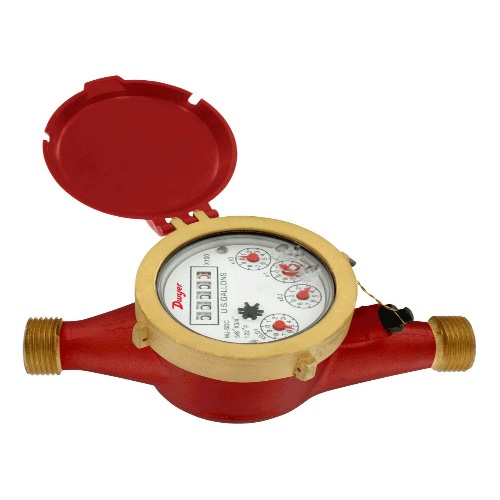

Dwyer WMH-A-C-08-100 is a Multi-Jet Hot Water Meter designed for water service. It has a temperature rating of 190°F (88°C) and offers high accuracy with ±3% for transitional flow and ±1.5% for nominal flow. The meter features color-coded lead wires for easy electrical connections and provides a pulse output with a frequency proportional to the flow rate. It can be mounted horizontally with the register facing up and has a pressure limit of 150 psi (10 bar). The wetted materials include brass body, couplings, and measuring chamber. The electrical rating is 0.01A @ 24VAC/DC. The flow range and totalizing display maximum can be found on the model chart, and pulse options include 0.1 gal, 1 gal, 10 gal, and 100 gal per pulse. Additional pulse output options and units can be consulted with the factory.
