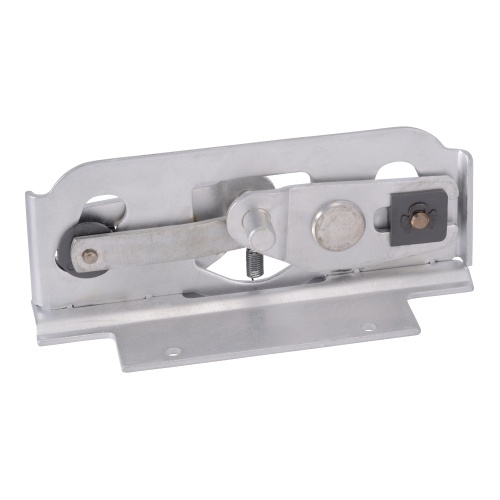

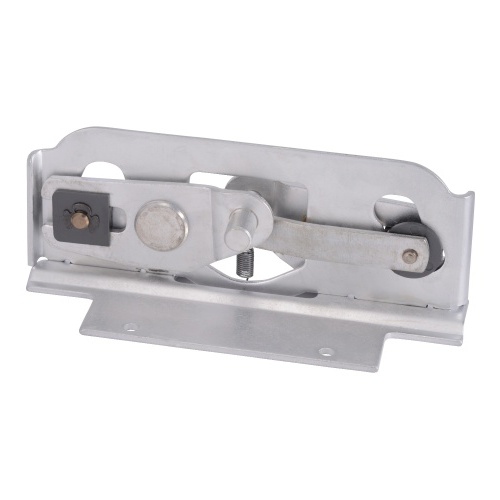

Schneider Electric 9999SM12 mechanical interlock kit Type S, horizontal mounting, NEMA 3-4, 2or3 / 4or5 pole
Normally In Stock
Code: 98563
Buy Schneider 9999SM12 3, 4 4.5, 2.3 Horizontal NEMA Starters NEMA Type S Motor Starters (8536 8736 8606) Accessories
Condition: New
Normally Stocked$405.28
Sale Price
$337.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Manual Starter, integral horsepower, NEMA M0, 600 VAC, 3 pole, 5 HP at 380/575 VAC, three Phase, no indicator, NEMA 1
Specifications
Starter NEMA Size
3
Starter NEMA Size
4
Component
Type S Contactor
Manufacturer
Schneider Electric
Sub Component
Interlocking Accessories
Features
Type S reversing magnetic contactors and starters are used for starting, stopping and reversing AC motors
Type S reversing contactors and starters are availble in NEMA Sizes 00 through 7
Type S contactors or starters can be mechanically interlocked so that only one device is energized at a time
The mechanical interlock is an interference (non-jamming) type, locking at the beginning of the stroke of any starter or contactor
The mechanical interlock is separate from the mounting pan on NEMA Sizes 3 and 4
Cams on the mechanical interlocks are operated by the contact carrier of each contactor
The mechanical interlock is attached to the underside of the two contactor baseplates on NEMA Sizes 3 and 4,This mechanical interlock is for two Type S contactors mounted horizontally
The mechanical interlock can be used with two NEMA Size 3 or 4 two or three pole contactors.
