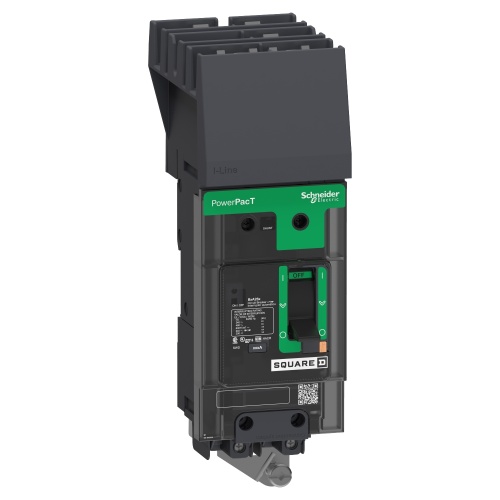

Schneider Electric BDA24015Y1 PowerPact B Circuit Breaker, 15A, 2P, 480Y/277V AC, 18kA at 480/277 UL, I-Line
Normally In Stock
Code: 91777
Schneider BDA24015Y1 Circuit breaker 15 A 2P 25 kA 208Y/120 V AC 50/60 Hz UL 489, 25 kA 240 V AC 50/60 Hz UL 489, 18 kA 480/277 V AC 50/60 Hz UL 489, 18 kA 480 V AC 50/60 Hz UL 489, 10 kA 600Y/347 V AC 50/60 Hz UL 489, 250 V DC UL 489 AB 80 % I-Line Distribution BD 015 UL, IEC, C
Condition: New
CALL FOR LEAD TIME$761.28
Sale Price
$634.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider BDA24015Y1 Circuit breaker 15 A 2P 25 kA 208Y/120 V AC 50/60 Hz UL 489, 25 kA 240 V AC 50/60 Hz UL 489, 18 kA 480/277 V AC 50/60 Hz UL 489, 18 kA 480 V AC 50/60 Hz UL 489, 10 kA 600Y/347 V AC 50/60 Hz UL 489, 250 V DC UL 489 AB 80 % I-Line Distribution BD 015 UL, IEC, C
Specifications
Amperage (Molded Case Breaker)
15 Amp
Poles (Molded Case Breaker)
Two Pole
Interrupt Code (Molded Case Breaker)
D Interrupt Rating
Frame Type (Molded Case Breaker)
B Frame
UL Listing (Molded Case Breaker)
UL 489
Maximum Voltage (Molded Case Breaker)
525 VAC
Mounting (Molded Case Breaker)
I-Line
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
18 Ka 480 Volt
Interrupt Rating (Molded Case Breaker)
25 Ka 240 Volt
Interrupt Rating (Molded Case Breaker)
25 Ka 208Y/120 Volt
Interrupt Rating (Molded Case Breaker)
18 Ka 480/277 Volt
Interrupt Rating (Molded Case Breaker)
10 Ka 600Y/347 Volt
Interrupt Rating (Molded Case Breaker)
250 Volt
Features
Available in 1, 2, 3, and 4 pole for unit mounts
Available in 1, 2, and 3 pole for I-Line
Dual rated AC/DC with 3 levels of breaking capacity
