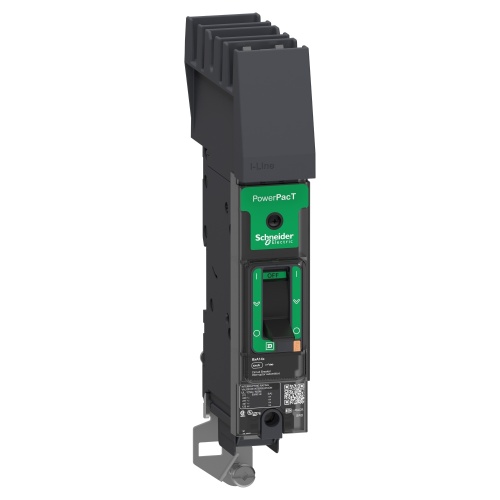

Schneider Electric BDA140203 PowerPact B Circuit Breaker, 20A, 1P, 277V AC, 18kA at 480/277 UL, I-Line
Normally In Stock
Code: 91674
Schneider BDA140203 Circuit breaker 20 A 1P 25 kA 208Y/120 V AC 50/60 Hz UL 489, 25 kA 240 V AC 50/60 Hz UL 489, 18 kA 480Y/277 V AC 50/60 Hz UL 489, 14 kA 125 V DC 50/60 Hz UL 489, 10 kA 600/347 V AC 50/60 Hz UL 489 B 80 % I-Line Distribution BD 020 UL, IEC, CCC, EAC, CSA, NOM S
Condition: New
CALL FOR LEAD TIME$292.84
Sale Price
$244.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider BDA140203 Circuit breaker 20 A 1P 25 kA 208Y/120 V AC 50/60 Hz UL 489, 25 kA 240 V AC 50/60 Hz UL 489, 18 kA 480Y/277 V AC 50/60 Hz UL 489, 14 kA 125 V DC 50/60 Hz UL 489, 10 kA 600/347 V AC 50/60 Hz UL 489 B 80 % I-Line Distribution BD 020 UL, IEC, CCC, EAC, CSA, NOM S
Specifications
Interrupt Code (Molded Case Breaker)
D Interrupt Rating
Amperage (Molded Case Breaker)
20 Amp
Frame Type (Molded Case Breaker)
B Frame
Poles (Molded Case Breaker)
Single Pole
UL Listing (Molded Case Breaker)
UL 489
Mounting (Molded Case Breaker)
I-Line
Maximum Voltage (Molded Case Breaker)
240 VAC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
25 Ka 240 Volt
Interrupt Rating (Molded Case Breaker)
25 Ka 208Y/120 Volt
Interrupt Rating (Molded Case Breaker)
18 Ka 480Y/277 Volt
Interrupt Rating (Molded Case Breaker)
14 Ka 125 Volt
Interrupt Rating (Molded Case Breaker)
10 Ka 600/347 Volt
Features
Available in 1, 2, 3, and 4 pole for unit mounts
Available in 1, 2, and 3 pole for I-Line
Dual rated AC/DC with 3 levels of breaking capacity
