Omega CN8501TC-R1-C4 TEMP CTRL SINGLE OUTPUT
Normally In Stock
Code: 893170
Omega CN8501TC-R1-C4 TEMP CTRL SINGLE OUTPUT
Condition: New
Usually ships Same Day or Next Day$1046.52
Sale Price
$872.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Omega CN8501TC-R1-C4 TEMP CTRL SINGLE OUTPUT
Specifications
Component
Controller
Manufacturer
Omega Engineering
Features

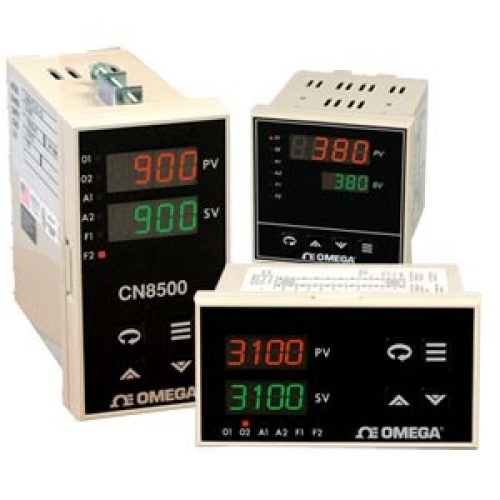

The CN8500 temperature controller is extremely versatile and user‑friendly
The operator needs to review only those parameters relevant to the particular application during setup
A dual digital display offers optimum process information at a glance
The dedicated upper display shows the process temperature, while the lower display displays setpoint and setup parameters
Individual LED’s identify the status of outputs, alarms, digital communications and special options
The CN8500 features a NEMA 4X (IP65) front panel and a universal power supply that accepts 103 to 253 Vac and 103 to 330 Vdc
Control algorithms available are P, PI, PD, PID, or on/off
The autotune feature automatically sets proportional band, rate and reset before the process reaches setpoint
These parameters provide quick stabilization of both the heating and cooling process without overshoot, hunting or cycling
The standard dual control outputs can be configured in a variety of control and alarm applications such as heat, heat/cool, heat/alarm, cool,or cool/alarm
The ramp to setpoint feature allows the user to define the rate of rise to reach the setpoint, thus minimizing thermal shock to the load during start-up.
