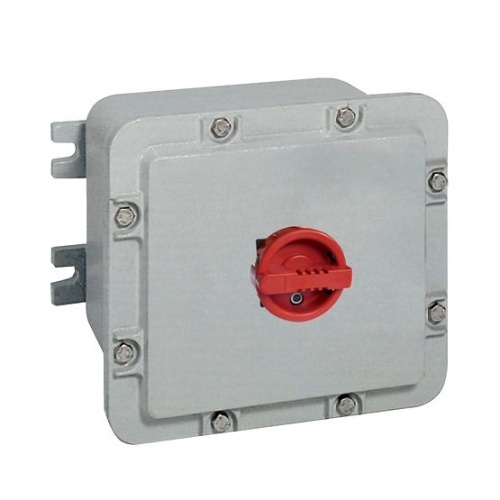

Appleton™ SWU363 ATX SWITCH 3-POLE 63A
Normally In Stock
Code: 876742
Appleton™ SWU363 ATX SWITCH 3-POLE 63A
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM SOLA FOR PRODUCT TO SHIP
$2531.40
Sale Price
$2109.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Appleton™ SWU363 ATX SWITCH 3-POLE 63A
Specifications
Component
Switch
Manufacturer
Appleton
Features
Increased Safety. Ideal for installation in chemical and petrochemical plants, refineries and other process industries
Available up to 690 Volts, and up to 160 Amps
3 or 4-pole switch mechanism with one 'NO' early break auxiliary contact
63 Amp version has padlockable handle in position "O" using maximum 4 padlocks [maximum handle diameter 8 mm (0.315 in) and minimum 15 mm (0.59 in) length]
63 Amp cable entries: 1 x M32 clearance on top and 1 x M32 and 1 x M20 clearance on bottom. Supplied with 2 x M32 polyamide cable glands, cable 10 mm to 25 mm (0.39" to 0.98") and 1 x M20 blanking plug
63 Amp is supplied with 1 x yellow self-adhesive laminated plastic label with black lettering, 65 mm to 18 mm (2.56" x 0.71")
160 Amp version has 3 or 4-pole switch mechanism with one 'NO' early break auxiliary contact
160 Amp version has padlockable handle in position "O", hinged door, closed with plastic double bar locks (key supplied) and is supplied with 4 fixing lugs
160 Amp cable entries: 1 x M63 clearance on top and 1 x M63 and 1 x M25 clearance on bottom. Supplied with 2 x M63 polyamide cable glands, cable 36 mm to 44 mm (1.42" to 1.73") and 1 x M25 blanking plug
