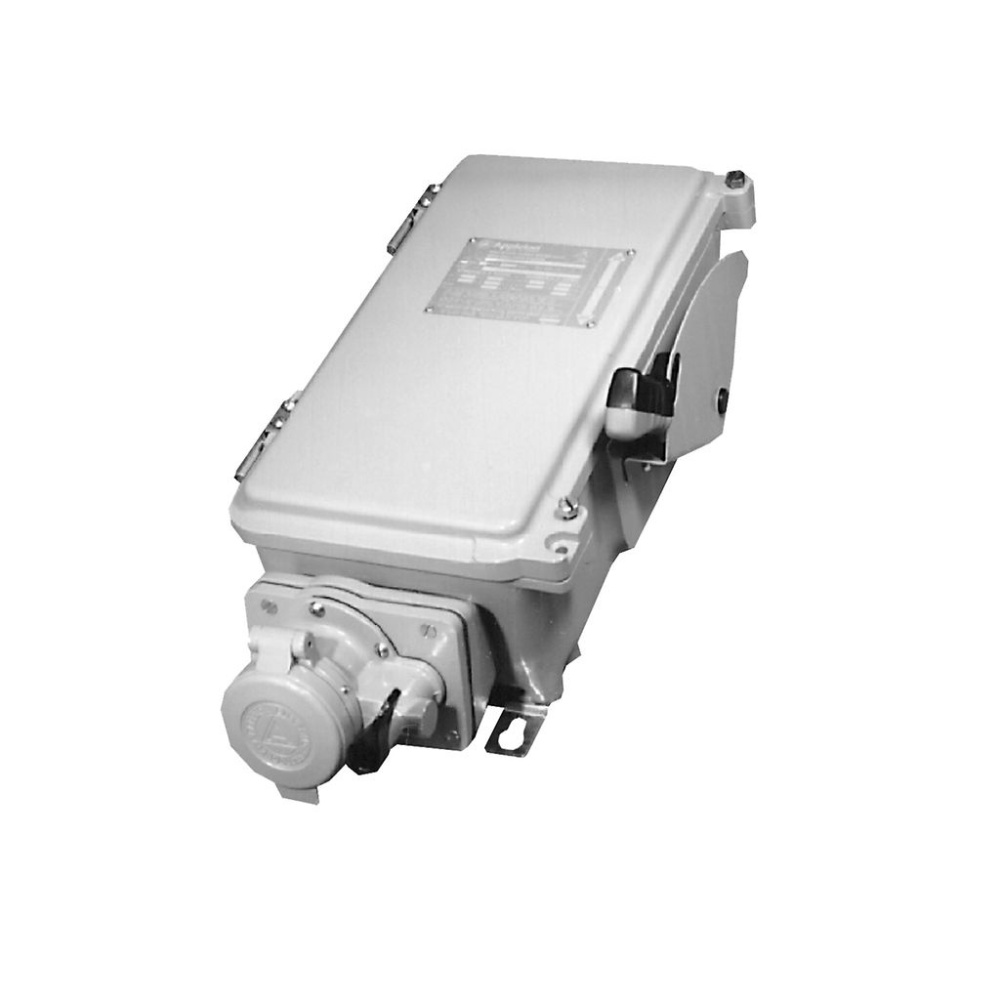

For use where an interlocked disconnect switch is desired to control a Powertite™ receptacle and insertion or removal of plug.

Dead front design: receptacle is not energized until plug is fully inserted and switch is engaged. Unit is equipped with defeatable door interlock which allows emergency access when switch is energized

Square D™ F­Series operating mechanism designed to endure at least three times the number of operations required by NEMA and UL standards

Insulated, dual-color polymer operating handle clearly indicates the switch being energized. Ergonomically designed handle is made of high-impact polymer material for exceptional ruggedness, durability and corrosion resistance

Short circuit withstand rated to 200,000 RMS symmetrical Amps (Class R and J Fusing)

Available in fused or non-fused versions. Class J fusing standard for WSR. Product can be retrofitted with Class K or S fuses.

Utilizes Style 2 (shell and extra pole) grounding and 3-wire, 4-pole receptacle wiring

Spring door standard and screw cap provided at no additional cost to meet NEMA 3, 3R, 4, 4X applications

Cover can be padlocked closed. Operating handle can be locked in the OFF or ON position

Stainless steel key-hole mounting feet and removable hinged cover on WSR Series allows for ease of installation and maintenance

Stainless Steel captive spring out quad lead cover bolts for easy access and corrosion resistance

Conduit entry is drilled and tapped to 1-1/2#8221

. Reducer bushings 1-1/2#8221

to 1-1/4#8221

and 1-1/2#8221

to 1#8221

provided at no additional cost (WSR)
