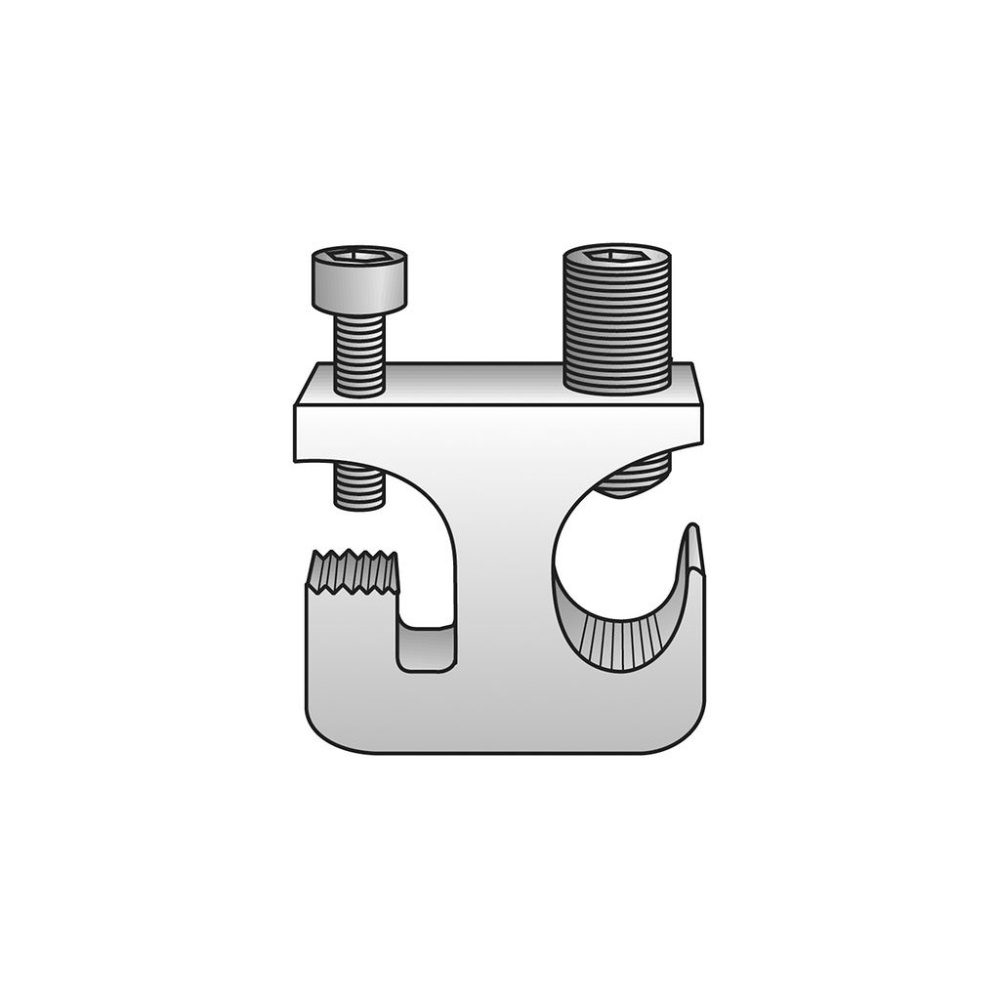

O‑Z/Gedney™ GCA10004B PIPE GND CLAMP
Normally In Stock
Code: 870211
O‑Z/Gedney™ GCA10004B PIPE GND CLAMP
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM SOLA FOR PRODUCT TO SHIP
$17.23
Sale Price
$10.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
O‑Z/Gedney™ GCA10004B PIPE GND CLAMP
Specifications
Component
Ground Clamp
Manufacturer
Appleton
Features
Type CTGC: For aluminum or copper conductors. Stainless steel screws are available. 1/4’ hex wrench tightens both tray and conductor set screws. Tray-gripping serrations bite through insulating oxide on surface of aluminum tray. For 1/2’ maximum straight tray rail, or 1/4’ 90° tray rail. Conductor size #6 to 250 MCM
Type GRC: Manufactured of high strength cast bronze. Suitable for direct burial and wet locations
Type G: Standard built-in ground wire connector for #8 Sol. through #2 Str. AWG wire. Cast Bronze clamps are suitable for direct burial and wet locations
Type GES: Used between hub and ground clamp
Type GC: High strength cast copper alloy. Screws electroplated to resist corrosion. GC:?Bare wire clamp from #10 solid to #3 stranded AWG. GCA: Armored cable or rigid conduit clamp from #8 solid to #4 stranded AWG. GCH: Rigid conduit clamp from #10 solid #4 stranded AWG. GCA and GC-100-02B are reversible for attachment to ground rods
Type CTGC: UL Listed and CSA Certified for copper conductors only
Type GRC, Type G and Type GC: UL Listed and CSA Certified
Type GES and GH: UL Listed
