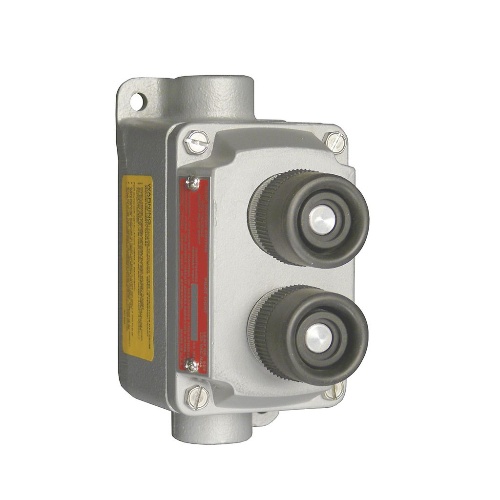

Appleton™ EFD250J2U2 2 PIL 2PB 2-GANG 1/2 DEAD-END
Normally In Stock
Code: 860621
Appleton™ EFD250J2U2 2 PIL 2PB 2-GANG 1/2 DEAD-END
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM SOLA FOR PRODUCT TO SHIP
$1726.69
Sale Price
$1438.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Appleton™ EFD250J2U2 2 PIL 2PB 2-GANG 1/2 DEAD-END
Specifications
Component
Push Button
Manufacturer
Appleton
Features
Explosionproof, Dust-Ignitionproof. Ideal for installation in chemical and petrochemical plants, refineries and other process industries
Factory sealed, eliminates the need for adding sealing fittings and compound at each conduit entrance.
EFD/EFDB factory sealed pilot lights are supplied with red jewel/guard assembly and 120 Vac/Vdc, 50/60 Hz, 6 Watt, Type 6S6 lamp
EFD/EFDB factory sealed selector switches furnished with nylon cam-operated, heavy-duty push buttons for either 2-position or 3-position maintained contact operation. They offer high thermal and arc resistance, high dielectric strength
EDS factory sealed push buttons are available with dust cap for use in areas where excessive dust, moisture or corrosive conditions are encountered. Enclosed stainless steel helper spring prevents accidental operation of push button in severe vibration
Heavy-duty push buttons, 10 Amp, 600 Vac rated
EFD/EFDB momentary push buttons are supplied with lockout type guards as standard. A hole in the guard will accept locks with up to 1/4#8221
hasp. Permits locking of push button to prevent unauthorized operation
EFD/EFDB backbox supplied with internal ground screw. Accurately tapped, tapered hubs for tight, rigid joints and ground continuity. Smooth, rounded integral bushing in each hub protects conductor insulation
Corrosion resistant captive stainless steel hex head cap screws hold covers to body
Stainless steel push button shaft operates within stainless steel bushing assuring long, maintenance free operation
Push button and selector switch contacts are silver cadmium oxide which are #8221
sealed#8221
in lower phenolic chamber isolated from corrosive elements. Assures positive contact and long, trouble-free operation
Clearly marked terminals with brass screws assure quick, easy wiring. Pigtail leads from push buttons are factory sealed in sealing well
