Code: 837126

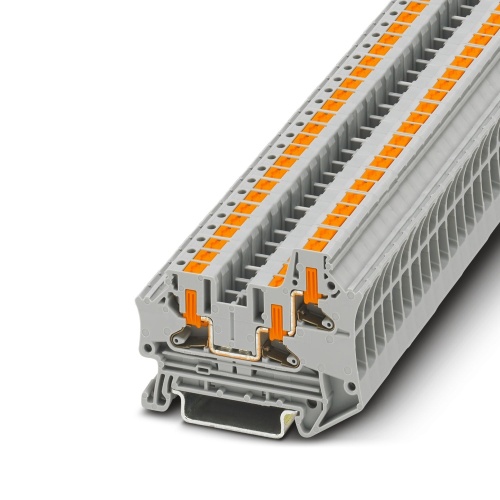

Phoenix Contact 1088731 Feed-through terminal block PTV 4-TWIN
Normally In Stock
Phoenix 1088731 Feed-through terminal block PTV 4-TWIN
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.76
Sale Price
$2.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1088731 A feed-through terminal block has a nominal voltage of 1000V and can handle a maximum current of 32A through its 3 connections, which are secured using a push-in connection method. The rated cross-sectional area is 4mm2, but it can accommodate cross-sections ranging from 0.2mm2 to 6mm2. This terminal block features mounting types NS35/7.5 and NS35/15, with a standard color of gray.
Specifications
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Multi-Conductor Terminal Block
Features
Clear wiring, thanks to lateral conductor entry
The compact design enables wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
