Code: 837122

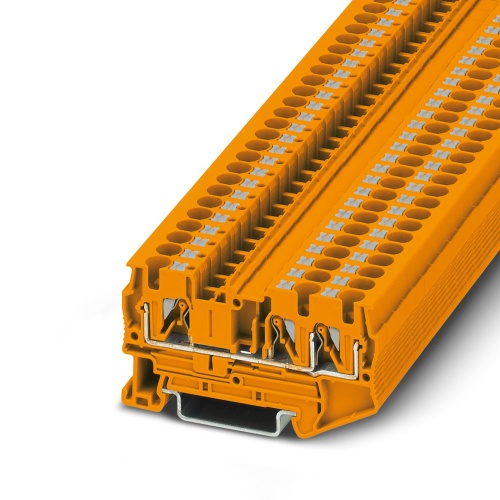

Phoenix Contact 1080104 Feed-through terminal block PT 4-TWIN OG
Normally In Stock
Phoenix 1080104 Feed-through terminal block PT 4-TWIN OG
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.89
Sale Price
$2.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1080104 The feed-through terminal block features a nominal voltage of 800 V and a maximum current rating of 32 A, accommodating up to three connections via push-in connections. The rated cross-section is 4 mm2, with an actual range of 0.2 mm2-6 mm2, and can be mounted using the NS35/7.5 or NS35/15 types, while its color is orange.
Specifications
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Orange
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Multi-Conductor Terminal Block
Features
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
