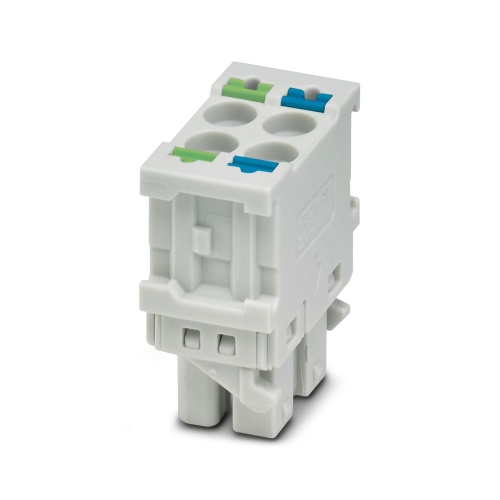

Phoenix Contact 2203195 The PCB connector has a nominal cross-sectional area of 2.5 mm² and is colored light gray. It's rated for a maximum current of 8 A and can handle a voltage of up to 320 V. The contact surface material is tin, and it features a socket connection type with four potential leads. The connector has two rows with four positions each, requiring four connections in total. This particular product range falls under the HSCP-SP 2,5-. specification, with a pitch distance of 5 mm between components. It utilizes push-in spring connection technology, and the conductor is attached to the PCB at a 0° angle. The connector doesn't require locking clips or mounting hardware, instead relying on its plug-in system, which is part of the HSC 2,5 specification. The packaging material is cardboard, and the spring opener is available in blue and green/blue colors.
