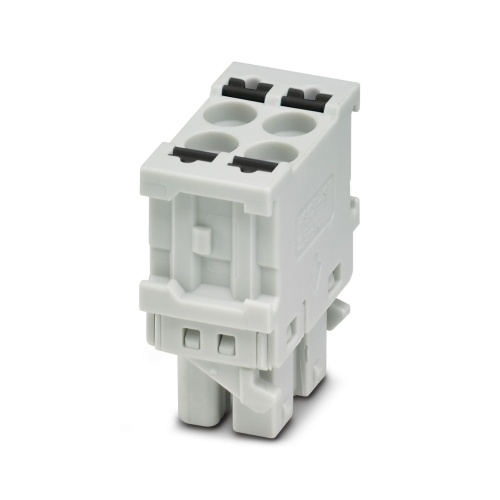

Phoenix Contact 2202569 PCB connector HSCP-SP 2,5-1U4-00/00-7035
Normally In Stock
Code: 832935
Phoenix 2202569 PCB connector HSCP-SP 2,5-1U4-00/00-7035
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$3.37
Sale Price
$2.81
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2202569 The PCB connector has a nominal cross-sectional area of 2.5 mm² and is colored light gray, with a maximum current rating of 8 A and a rated voltage of 320 V (III/2). The contact surface is made of tin and features a socket connection type, accommodating four potentials, arranged in two rows with four positions and connections. It utilizes push-in spring connections, has a specific pitch of 5 mm, and employs a plug-in system designated as HSC 2,5, without any locking mechanism.
Specifications
Manufacturer
Phoenix Contact
Component
Accessories
Sub Component
PCB Connector
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Operation and conductor connection from one direction enable integration into front of device
Quick and convenient testing using integrated test option
User-friendly front connection plug for high contact densities
