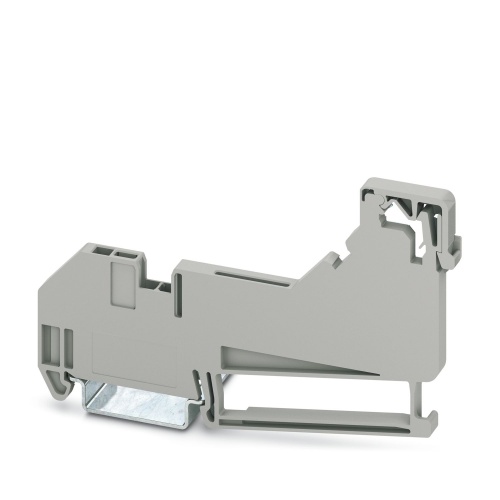

Phoenix Contact 3062074 Support bracket AB-SK TOP INSULATED
Normally In Stock
Code: 832777
Phoenix 3062074 Support bracket AB-SK TOP INSULATED
Condition: New
Usually ships Same Day or Next Day$4.48
Sale Price
$3.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3062074 A support bracket with a specified configuration is used to secure equipment on a busbar. The dimensions of this bracket include a width of 5.2mm and a height of 102.4mm, while it has two positions available for installation. The bracket itself has a gray color and utilizes DIN rail mounting for convenient setup, with spaces set every 20cm apart.
Specifications
Manufacturer
Phoenix Contact
Component
Accessories
Sub Component
Support Bracket
Features
For mounting SK and SKS shield connection clamps
Compact design with 5.2 mm pitch
Parking option for FBS plug-in bridges

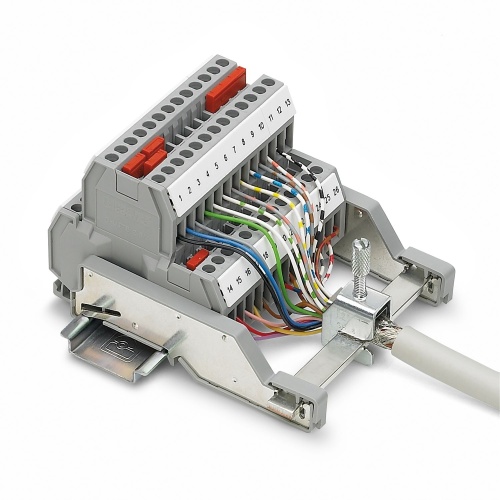

For user-friendly shield connection, especially for single and multi-level terminal blocks and devices with a front connection

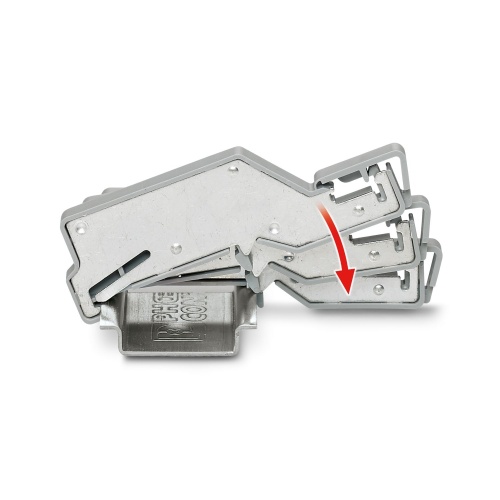

The 3 x 10 mm rail can be mounted in the supports vertically, horizontally, and at a 45° angle for optimum conductor placement
End bracket function
