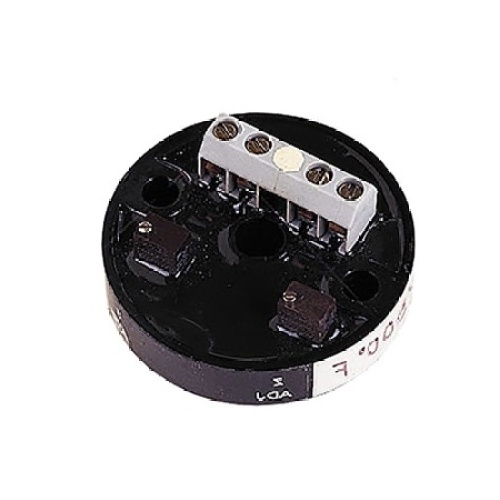

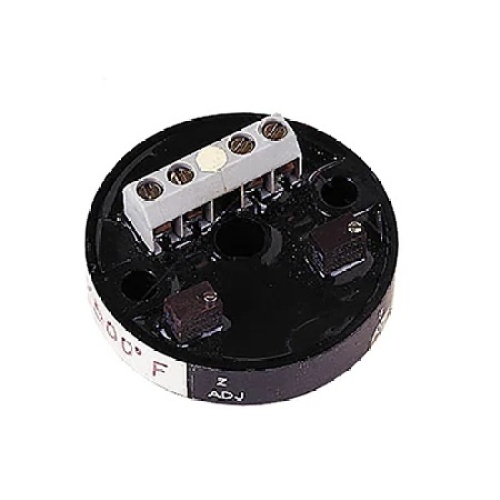

Omega TX94-4 RTD Transmitter
Normally In Stock
Code: 830494
Omega TX94-4 RTD Transmitter
Condition: New
Usually ships Same Day or Next Day$482.15
Sale Price
$401.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
RTD Transmitter, Loop Supply-18 °C to 260 °C I/P4 mA to 20 mA O/P, Temperature I/P & Process O/P Class, Trim Pot, TX93 Series, Each
Specifications
Component
RTD Transmitter
Conditioner Supply Voltage
8-35 Vdc
Features
Accuracy± 0.1 %
Accuracy Detail
±0.1% FS (includes effects of linearity, hysteresis and repeatability)
Bandwidth
3 dB @ 3Hz
Calibration
Trimpot
Electrical Output
4 to 20 mA
Hysteresis
±0.1%
Linearity
±0.1%
Loop Resistance, Max
(Vs-8V)/0.02A
Operating Temperature, Max
85 °C
Operating Temperature, Min
-25 °C
Repeatability
±0.1%
Setup Controls
Trimpot
Storage Temperature, Max
125 °C
Storage Temperature, Min
-65 °C
Supply Power Note
8 to 35 Vdc
24 Vdc recommended
Supply Power Type
DC
Supply Voltage
8 to 35 Vdc
Zero Setting Adjustable Range
±25%
