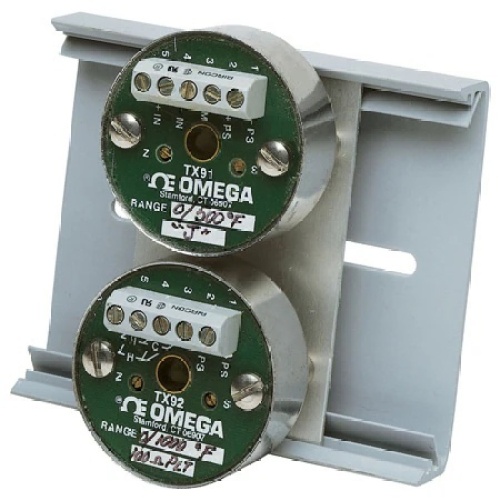

Omega TX92-2 RTD Transmitter
Normally In Stock
Code: 830482
Omega TX92-2 RTD Transmitter
Condition: New
Usually ships Same Day or Next Day$1089.71
Sale Price
$908.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
RTD Transmitter, Loop Supply, -18 °C to 93 °C I/P, 4 mA to 20 mA O/P, Temperature I/P & Process O/P Class, Trim Pot, FM Approved, TX90 Series, Each
Specifications
Component
RTD Transmitter
Conditioner Supply Voltage
11-44 Vdc
Features
Accuracy± 0.1 %
Accuracy Detail
±0.1% FS (includes effects of linearity, hysteresis and repeatability) referenced to the mV input
Approvals
FM
Calibration
Trimpot
Electrical Output
4 to 20 mA
Hysteresis
±0.1%
Isolation
Non-Isolated
Linearity
±0.1%
Loop Resistance, Max
(Vs-11V)/0.02A
Operating Temperature, Max
85 °C
Operating Temperature, Min
-32 °C
Repeatability
±0.1%
Sensor Type
Transmitter
Storage Temperature, Max
90 °C
Storage Temperature, Min
-65 °C
Supply Power Note
11 to 44 Vdc
24 Vdc recommended
Supply Power Type
DC
Supply Voltage
11 to 44 Vdc
Zero Setting Adjustable Range
±10%
