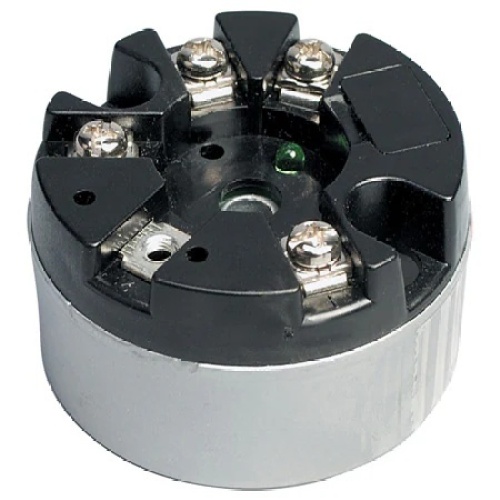

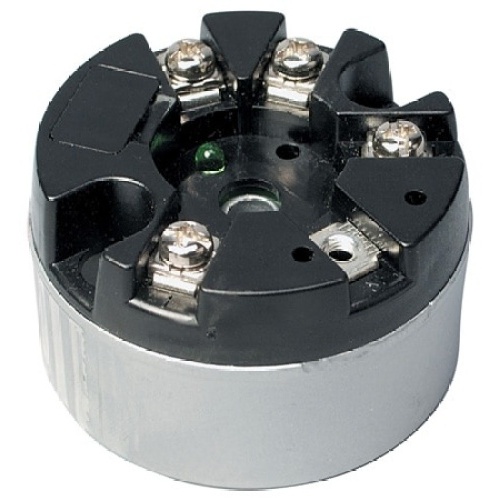

Omega TX31-K Miniature Temperature Transmitter
Normally In Stock
Code: 830470
Omega TX31-K Miniature Temperature Transmitter
Condition: New
Usually ships Same Day or Next Day$646.04
Sale Price
$538.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Miniature Temperature Transmitter, Isolated, Head Mount, Loop Supply, 0 °C to 1000 °C I/P, 4 mA to 20 mA O/P, Temperature I/P & Process O/P Class, 1000 V Isolation, Pot/Switch, TX31 Series, Each
Specifications
Conditioner Supply Voltage
12-32 Vdc
Component
Miniature Temperature Transmitter
Features
CalibrationTrimpot/Switch
Cold Junction Compensation
±2°C
Diameter
45 mm
Electrical Connection
Screw Terminal
Electrical Output
4 to 20 mA
Height
27 mm
Housing Material
Aluminum, Epoxy, Polycarbonate
Humidity Range
5 to 85% RH non condensing
Input Type
Thermocouple
Isolation
Galvanic, 1000 Vrms Input/output , continuous
Linearity
±0.01%
Operating Temperature, Max
70 °C
Operating Temperature, Min
-20 °C
Output Detail
4 to 20 mA
Upscale < 26 mA, Downscale <3.8 mA
Output Load
50 x (loop power - 12) Ω
Probe Length
0 mm
Repeatability
±0.01%
Repeatability Note
±0.1% of voltage input span
Response Time
200 ms
RFI Effect
< ±10% of span (5W, 470 MHz)
Sensor Type
Transmitter
Setup Controls
Trimpot/Switch
Sheath Material
N/A
Supply Power Effects
±0.01%/V
Supply Power Note
12 to 32 Vdc
Reverse polarity protected
Supply Power Type
DC
Supply Voltage
12 to 32 Vdc
Temperature Coefficient
±0.02% /°C
Temperature Input Range
0 to 600°C
Weight
65 g
Wire Gauge
22 to 12 AWG
Zero Setting Adjustable Range
0.05
