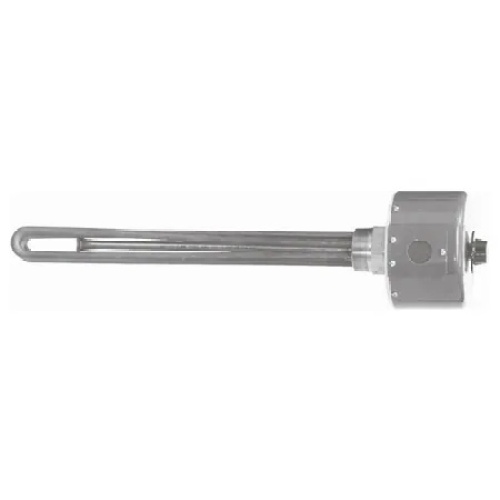

Omega ARTM-1000E2/120V Immersion Heater
Normally In Stock
Code: 830422
Omega ARTM-1000E2/120V Immersion Heater
Condition: New
Usually ships Same Day or Next Day$1111.86
Sale Price
$926.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Immersion Heater, Clean Water, 85 W/in², Screw Plug, 1 " NPT, 6 5/16 " Element, 60 °F to 187 °F, 1 Phase, 120 V, 1 kW, Copper, Moist/EXPL Resist, Integral Thermostat, ATRM Series, Each
Specifications
Heater Voltage
120 VAC
Manufacturer
Omega Engineering
Component
Immersion Heater
Heater Watt
1000 Watt
Features
1" Brass Screw Plug
Copper Sheath for Clean Water Applications
Integral Bulb and Capillary Thermostat— 3 Temperature Ranges Available
U.L. Listed with General Purpose NEMA-1 Rated Enclosure
Additional FeaturesIntegral Thermostat
ApprovalsUL listed with general purpose enclosure
Enclosure Ratings NoteGeneral purpose NEMA-1
optional moisture tight/explosion resistant enclosure meets Class l, groups C & D, Div. 1 & 2, Class ll, Groups E, F & G, Div. 1&2, Class lll, Div. 1 & 2
Form factorScrew Plug Immersion
Heated MediumWater
Number of Heating Elements1
Number of Phases1
Process Connection MaterialBrass
Process Connection Size1 in
Process Connection TypeNPT Male
Sheath Diameter0.315 in
Sheath MaterialCopper
Thermostat NoteBulb and capillary type, 3 temperature ranges available
60 to 187°F, 60 to 240°F, or 0 to127°F
Thermostat TypeBulb, capillary
