Code: 828963

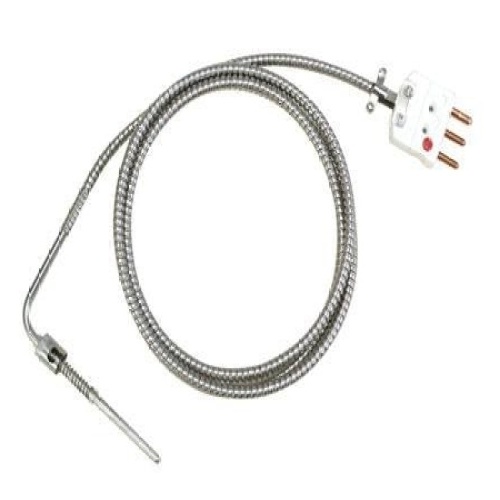

Omega BT-090-RTD-5-36-2 Extruder Thin Film RTD Probe
Normally In Stock
Omega BT-090-RTD-5-36-2 Extruder Thin Film RTD Probe
Condition: New
Usually ships Same Day or Next Day$333.46
Sale Price
$277.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Extruder Thin Film RTD Probe, 90 ° Angle, Bayonet, 3 Prong STD CONN, -200 °C to 260 °C, Class A, 0.187 " x 5 " Probe, 36 " Cable, 3 Wires, 304 SS, Immersion, 100 Ω, BT, Each
Specifications
Manufacturer
Omega Engineering
(Instrument-Sensor) Type
RTD
Component
Extruder Thin Film RTD Probe
Features
Ideal for Plastic Process Machinery and Applications Requiring Bayonet Locking Installation(BT Style)or Installations Using a Compression Fitting and SST Flex Hose Over the Cable(CF Style)
Sensors Contain Precision 100 Ohm Class A DIN Platinum Elements
All Models Incude 3/16" Diameter 304SS Sheaths and 60 Inches of Flex Armor
Temperature Range: -200 to 260ºC (Optional 480ºC Cable Available).
AccuracyClass A
Nominal Resistance100 Ω
Nominal Resistance/Curve NotePrecision 100 Ω Class “A” Thin Film DIN Platinum Element
Number of Wires3
Probe Diameter0.1875 in
Probe TypeBayonet Style RTD Probes
Process Temperature, Min-200 °C
Sensing Element100 Ω Class “A” DIN Platinum Element
Sheath Material304 Stainless Steel
Temperature Sensor TypeRTD
Wire Gauge26 AWG
Wire TypeStranded
