Code: 820254

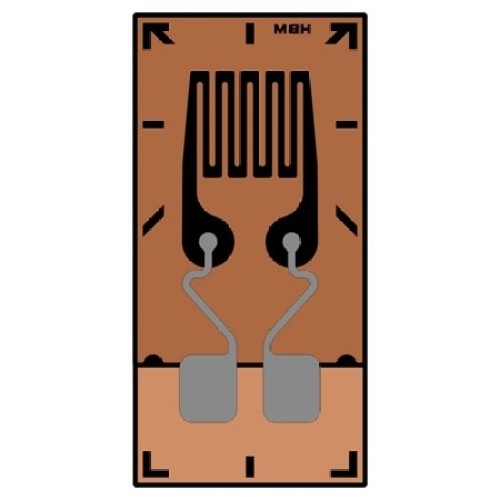

Omega 1-LM11-1.5/350GE Encapsulated Foil Strain Gage
Normally In Stock
Omega 1-LM11-1.5/350GE Encapsulated Foil Strain Gage
Condition: New
Usually ships Same Day or Next Day$359.51
Sale Price
$299.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Encapsulated Foil Strain Gage, OMEGA/HBM, Linear Solder Pads, 350 Ω, ST Number, 1.5 mm x 2.5 mm Grid (LxW), -200 °C to 300 °C(-328 °F to 662 °F), for High Temp & Alternating Load, M Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Encapsulated Foil Strain Gage
Features
High Resistance to Alternating Loads
High Temperature Range 300°C (572°F)
Wide Spectrum of Different Types
All models sold in a 5-pack, except 1-LM11 which are sold in a 10-pack
Bend Radius, Min5 mm
Carrier Thickness35 μm
Electrical ConnectionSolder Pads
Elongation10000 µm to 15000 µm
Encapsulation Thickness25 μm
Gauge Factor2.2
Grid StyleLinear
Grid Thickness5 μm
MaterialsGlass reinforced phenolic, Chromium-Nickel, Polyimide
Mechanical Life10⁷ cycles
Mechanical Life Note10⁷ cycles at 2000 µm/m, 10⁶ cycles at 2200 µm/m, 10⁴ cycles at 3100 µm/m
Nominal Resistance350 Ω
Operating Temperature, Max300 °C
Operating Temperature, Min-200 °C
Pack Size10
Resistance Tolerance±0.3%
Temperature Compensation10.8 ppm/K
