Code: 818543

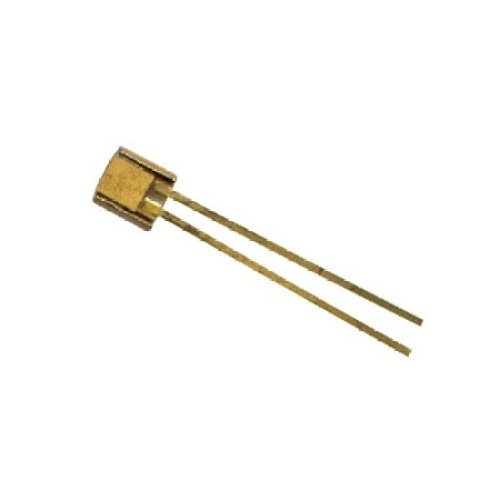

Omega CY670D-CY Cryogenic Sensors: Cryogenic Sensors
Normally In Stock
Omega CY670D-CY Cryogenic Sensors: Cryogenic Sensors
Condition: New
Usually ships Same Day or Next Day$1236.67
Sale Price
$1030.56
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Cryogenic Sensors: Cryogenic Sensors, CRYOGEN SENSOR COPBOBBIN GRADD
Specifications
Manufacturer
Omega Engineering
Component
Cryogenic Sensors: Cryogenic Sensors
Features
Best Accuracy Across the Widest Useful Temperature Range, 1.4 to 500 K
Tightest Tolerances for Applications from 30 to 500 K
Rugged, Reliable SD Package (Designed to Withstand Repeated Thermal Cycling and Minimize Sensor Self-Heating)
Conformance to Standard Curve CY670 (Temperature Response Curve Variety of Packaging Options)
Current, Max Note1 mA, continuous or 100 mA, pulsed
Output SignalVoltage
Process Temperature, Max226.85 °C
Process Temperature, Min-271.8 °C
Recommended Excitation10 µA, ± 0.1%
Repeatability± 10 mK @ 4.2 K
Reverse Voltage60 V
Supply Power Effects16 µW @ 4.2 K
10 µW @ 77 K
5 µW @ 300 K
Temperature Sensor TypeSilicon Diode
Thermal Response TimeSD Model: Typical <10 ms @
4.2 K, 100 ms @ 77 K, 200 ms
@ 305 K
BR Model: 1 ms @ 4.2 K,
13 ms @ 77 K, 20 ms @ 305 K
Use in Magnetic Field NoteNot recommended for use in magnetic field applications below 60 K
low magnetic field dependence when used in fields up to 5 tesla above 60 K
Use in Radiation NoteRecommended for use only in low level radiation
