Code: 818390

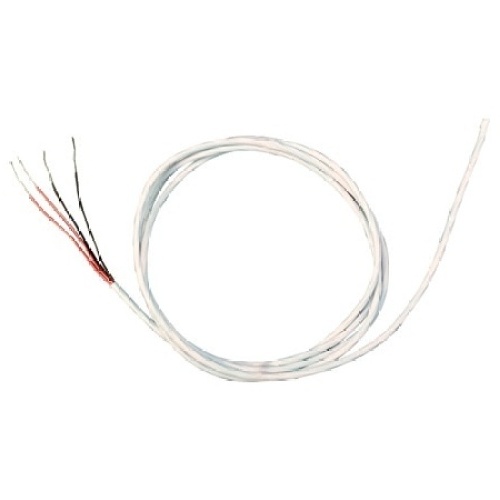

Omega HSRTD-3-100-A-80-E-TA4F Flexible Sealed RTD Sensor
Normally In Stock
Omega HSRTD-3-100-A-80-E-TA4F Flexible Sealed RTD Sensor
Condition: New
Usually ships Same Day or Next Day$192.97
Sale Price
$160.81
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Flexible Sealed RTD Sensor, 80 " Cable, 26 AWG, PFA, TA4F Connector, 100 Ω, 4 Wires, °C Unit, -60 °C to 250 °C (-76 °F to 482 °F), Class A, ANSI (Std), HSRTD Series, Each
Specifications
Manufacturer
Omega Engineering
(Instrument-Sensor) Type
RTD
(Instrument-Sensor) Temperature Range
-60 °C - 250 °C
Component
Flexible Sealed RTD Sensor
Features
100 Ohm, Class “A” or “B” DIN Platinum Thin Film Element Standard, 1000 ohm Resistance Also Available
Sealed Against Moisture and Corrosion
PFA Insulated Cable
Temperature Range: -60 to 260ºC
InsulationPFA
Process Temperature, Max250 °C
Process Temperature, Min-60 °C
Temperature Sensor TypeRTD
Tip Diameter3 mm
Wire Gauge26 AWG
Wire TypeStranded
