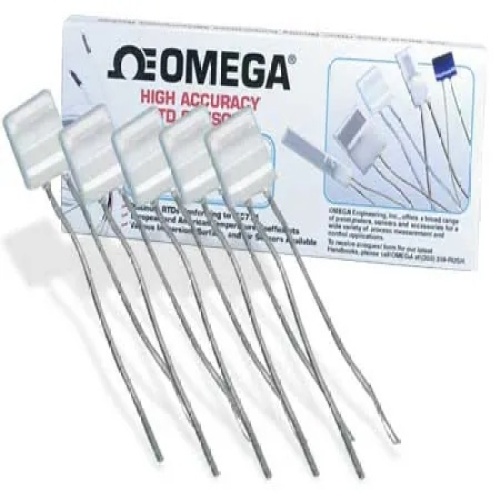

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 808028
Omega F2010-500-B-100 Platinum RTD Element
Normally In Stock
Omega F2010-500-B-100 Platinum RTD Element
Condition: New
Usually ships Same Day or Next Day$894.30
Sale Price
$745.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Platinum RTD Element, OMEGAFILM, Thin Film, Flat Profile, -50 °C to 500 °C (-58 °F to 932 °F), 500 Ω, Class B Accuracy per IEC60751, 2 Wires, 9.5 mm x 2 mm x 0.8 mm (LxWxT), 10 mm, F Series, 100 Piece
Specifications
Manufacturer
Omega Engineering
Component
Platinum RTD Element
Features
Flat, Small Profile Thin Film RTD Element
Specification DIN EN 60751 (According to IEC 60751)
Temperature Range -50 to 500°C (-58 to 932°F) Depending on Accuracy Class (See Table Below)
Temperature Coefficient α = 0.00385Ω/Ω/°C Nominal
Insulation Resistance> 10 MΩ
Insulation Resistance Note>10 MΩ @ 20°C
>1 MΩ @ 500°C
Lead MaterialPlatinum Clad Nickel Wire
Number of Wires2
Response Time, Air3 sec @ 50%
9 sec @ 90%
Response Time NoteResponse Time Water Current (v = 0.4 m/s)
t0.5 = 0.2 s, t0.9 = 0.4 s
Air Stream
(v = 1 m/s) t0.5 = 3.0 s, t0.9 = 9.0 s
Response Time, Water0.2 sec @ 50%
0.4 sec @ 90%
Self Heating Effect0.4 K/mW @ 0°C
Sensor Height0.8 mm
Shock Resistance100 g Acceleration with 8 ms Half Sine Wave
Temperature Coefficient0.00385Ω/Ω/°C
Temperature Sensor TypeRTD
Vibration Resistance10 to 2000 Hz sweep rate, acceleration 40g
Wire Diameter0.2 mm
Wire Length10 mm
