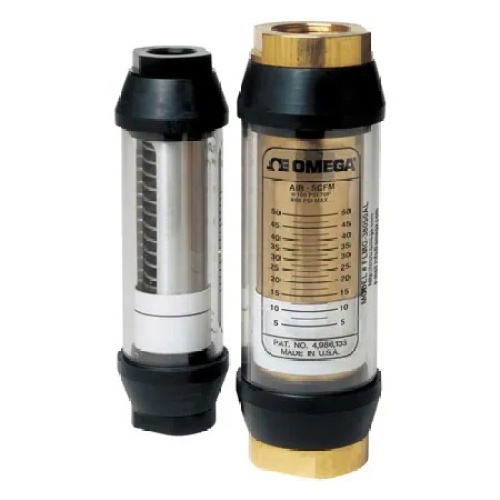

Omega FLMG-10100AL Variable Area Flow Meter
Normally In Stock
Code: 804843
Omega FLMG-10100AL Variable Area Flow Meter
Condition: New
Usually ships Same Day or Next Day$759.05
Sale Price
$632.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Variable Area Flow Meter, Pneumatic, In-line, Air, 10 SCFM to 100 SCFM, 600 psi, 1 " NPT Female, 116 °C (240 °F), ± 4 %, Direct Read, Al, Buna, PTFE, SS, FLMG Series, Each
Specifications
(Instrument-Sensor) Medium
Air
Manufacturer
Omega Engineering
Component
Variable Area Flow Meter
(Instrument-Sensor) Span
0 To 600 Psi
Features
Monitoring Most Pneumatic or Compressed Gas Systems
Flow Rates From 1 to 900 SCFM @ 100 psi
High Pressure: to 600 psi for Brass or Aluminum, 1000 psi for Stainless Steel
High Temperature—to 116°C (240°F) Standard, 204 or 316°C (400 or 600°F) Optional
Accuracy± 4 %
Mechanical Life>10^6 cycles
Media CompatibilityAir
Number of Tubes1
Process Connection TypeNPT Female
Process Temperature, Max116 °C
Repeatability± 1%
ScaleDirect Read
Scale Media CalibrationAir @ 100 psi
Standard Calibration FluidAir @ 21°C (70°F), 1.0 sg and 6.8 bar (100 psig)
Valve Includedfalse
