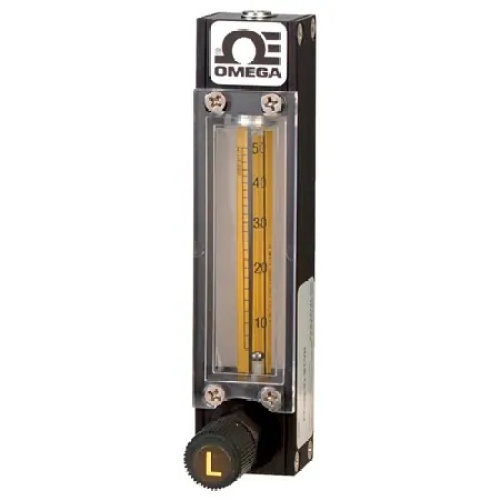

Omega FLDN3504C-NV Variable Area Flow Meter
Normally In Stock
Code: 804599
Omega FLDN3504C-NV Variable Area Flow Meter
Condition: New
Usually ships Same Day or Next Day$630.55
Sale Price
$525.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Variable Area Flow Meter, Nitrogen, 20 mL/min to 200 mL/min, 200 psi, 1/8 " NPT Female, 121 °C (250 °F), ± 5 %, Direct Read, 316 SS, Glass, FKM, Carboloy, FLD Series, Each
Specifications
(Instrument-Sensor) Medium
Nitrogen
Manufacturer
Omega Engineering
(Instrument-Sensor) Span
0 To 200 Psi
Component
Variable Area Flow Meter
Features
Accuracy± 5 %
Back Plate1/8" thick white acrylics
Float TypeCarboloy
Media CompatibilityNitrogen
MountingPanel Mount
Mounting Fittings In Contact With Fluids316 stainless steel, Aluminum, black anodized
Number of Tubes1
Operating Pressure, Max200 psi
Process Connection Size1/8 in
Process Connection TypeNPT Female
Process Temperature, Max121 °C
Repeatability± 0.25%
ScaleDirect Read
Turndown Ratio10:1
Valve TypeNo Valve
