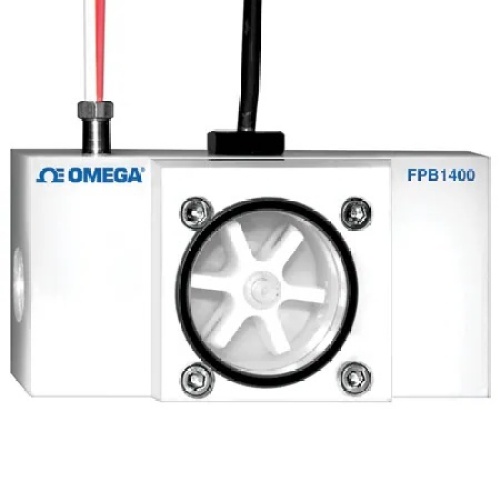

Omega FPB1404 Plastic Paddlewheel Flow Meter
Normally In Stock
Code: 804557
Omega FPB1404 Plastic Paddlewheel Flow Meter
Condition: New
Usually ships Same Day or Next Day$993.10
Sale Price
$827.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Plastic Paddlewheel Flow Meter, 5 Vdc to 24 Vdc, 1 GPM to 10 GPM, 1/2 ", NPT Female, ± 1 % Accuracy, Amplified Square Pulse, PP, 150 psi, FPB1400 Series, Each
Specifications
Manufacturer
Omega Engineering
(Instrument-Sensor) Span
0 To 150 Psi
Component
Paddlewheel Flow Meter
Features
Easy to Install and Operate
Mounts in Any Direction
Only One Moving Part
Visual Flow Indication
Accuracy± 1 %
ApprovalsCE
Electrical OutputAmplified Square Pulse, NPN Open Collector
Height2.2 in
Length4.25 in
Operating Pressure, Max150 psi
Operating Pressure, Min0 psi
Output DetailAmplified Square Pulse, NPN Open Collector (load 30 mA maximum)
Pressure Drop NoteMaximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes
Pressure TypeGauge
Process Connection TypeNPT Female
Process Temperature, Max60 °C
Response Time1 s
Response Time NoteAt 1 sec 10 to 90% of full scale, at 2 sec below 10% of full scale
Supply Current2 mA
Supply Power Note5 to 24 Vdc @ 2 mA
Supply Voltage5 to 24 Vdc
Viscosity NoteCalibrated 1 cSt, up to 50 cSt with field calibration
Viscosity Range1 to 50 cSt
Width2.2 in
