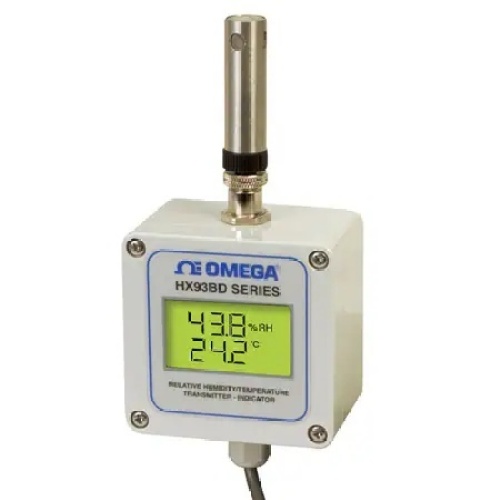

Omega HX93BDV2-RP1 Relative Humidity/Temperature Transmitter
Normally In Stock
Code: 804368
Omega HX93BDV2-RP1 Relative Humidity/Temperature Transmitter
Condition: New
Usually ships Same Day or Next Day$1117.76
Sale Price
$931.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Omega HX93BDV2-RP1 Relative Humidity/Temperature Transmitter
Specifications
Component
Relative Humidity/Temperature Transmitter
Conditioner Input Signal Type
Voltage
Manufacturer
Omega Engineering
Conditioner Output Signal Range
0-10 Vdc
Conditioner Supply Voltage
12-30 Vdc
Conditioner Input Signal Type
RTD
Conditioner Input Signal Type
Thermocouple
Features
4 to 20 mA, 0 to 1 Vdc, 0 to 5 Vdc or 0 to 10 Vdc Outputs for Both Temperature and Relative Humidity
Rugged Industrial Splashproof Enclosure NEMA 13 (IP54)
Accurate to ± 0.6°C (0 to 50°C) and ± 2.5% (10 to 90% Relative Humidity)
New Models with Built-In Digital Display to Indicate Temperature and Relative Humidity
Cable Diameter8 mm
Electrical ConnectionLiquid-tight nylon with neoprene gland, for 2.50 to 8.00 mm (0.09 to 0.315") diameter cable
internal 6 position terminal block accepts 14 to 22 gauge wire
Enclosure RatingsIP54, NEMA Type 13
Length80.01 mm
Materials, WettedPolycarbonate
Measurement TypeTemperature, Humidity
Relative Humidity Response Time8 sec
Repeatability± 0.1% RH
Response Time5 to 30 sec
Sampling Rate0.25 Hz (4 seconds between updates)
Supply Power TypeDC
Temperature Measurement, Max75 °C
Temperature Measurement, Min-30 °C
Width82.3 mm
Wire Gauge22 to 14 AWG
