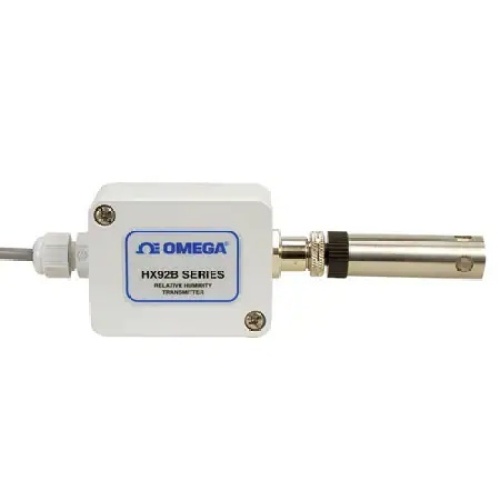

Omega HX92BV0-RP1 Relative Humidity Transmitter
Normally In Stock
Code: 804358
Omega HX92BV0-RP1 Relative Humidity Transmitter
Condition: New
Usually ships Same Day or Next Day$671.78
Sale Price
$559.82
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Omega HX92BV0-RP1 Relative Humidity Transmitter
Specifications
Conditioner Number Input Signals
1 Input Signal
Conditioner Supply Voltage
9-30 VDC
Conditioner Output Signal Type
Current
Conditioner Output Signal Type
Voltage
Manufacturer
Omega Engineering
Component
Relative Humidity Transmitter
Conditioner Output Signal Range
0-1 Vdc
Conditioner Input Signal Type
AC Voltage
Features
4 to 20 mA, 0 to 1 Vdc, 0 to 5 Vdc or 0 to 10 Vdc Outputs
Accurate to ± 2.5% (20 to 80% Relative Humidity)
Rugged Industrial Splashproof Enclosure NEMA 13 (IP54)
Duct Mount Kit Included with Duct Mount and Remote Probe Models
Accuracy± 4 %
Cable Diameter6.73 mm
Enclosure RatingsIP54
Materials, WettedPolycarbonate
Measurement TypeHumidity
Relative Humidity0 to 100% RH
Relative Humidity Response Time8 sec
Repeatability± 0.1% RH
Sampling Rate0.25 Hz (4 seconds between updates)
Supply Power TypeDC
Temperature Measurement, Max75 °C
Temperature Measurement, Min-30 °C
Wire Gauge22 to 14 AWG
