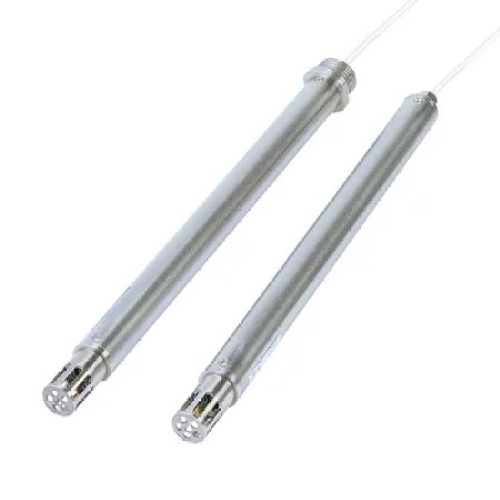

Omega HX94BV0W Relative Humidity/Ambient Temperature Transmitter
Normally In Stock
Code: 804363
Omega HX94BV0W Relative Humidity/Ambient Temperature Transmitter
Condition: New
Usually ships Same Day or Next Day$653.05
Sale Price
$544.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Omega HX94BV0W Relative Humidity/Ambient Temperature Transmitter
Specifications
Conditioner Supply Voltage
9-30 VDC
Conditioner Input Signal Type
Voltage
Manufacturer
Omega Engineering
Conditioner Output Signal Range
0-1 Vdc
Component
Relative Humidity/Ambient Temperature Transmitter
Conditioner Input Signal Type
Thermocouple
Features
RoHS Certified
Accurate to ± 2.5% Relative Humidity and ± 0.6°C (± 1°F) Temperature
Two Separate Analog Outputs, Humidity and Temperature
Four Analog Outputs available, 4 to 20 mA, 0 to 1V, 0 to 5V, 0 to 10V
Accuracy±0.6 °C
Accuracy Detail± 0.6ºC from 0 to 50ºC (32 to 122ºF), ± 1.25ºC from 50 to 100ºC (122 to 212ºF), ± 2.5 % from 20 to 80% RH, ± 3.5% from 5 to 20% and 80 to 95% RH, ± 4% from 0 to 5% and 95 to 100% RH
Enclosure Material316 Stainless Steel, NEMA 4
non-NPT version includes IP68-rated cable gland, Stainless Steel
Enclosure RatingsNEMA Type 4
Hysteresis± 1%RH
Lead Length1.8 m
Length258 mm
Load Resistance[(V supply - 4V)/0.02A)] -50
200Ω @ 9V supply or 1250Ω @ 30V supply
Loop Resistance Note1.25 kΩ
Measurement TypeTemperature, Humidity
Operating Temperature, Max100 °C
Operating Temperature, Min0 °C
Outer Diameter19 mm
Relative Humidity0 to 100% RH
Relative Humidity Accuracy± 2.5% RH
Relative Humidity Response Time8 sec
Repeatability± 0.2°C
Response Time5 to 30 sec
Sampling Rate0.25 Hz (4 seconds between updates)
Sensor TypeDigital sensor
Supply Power TypeDC
Supply Voltage9 to 30 Vdc
