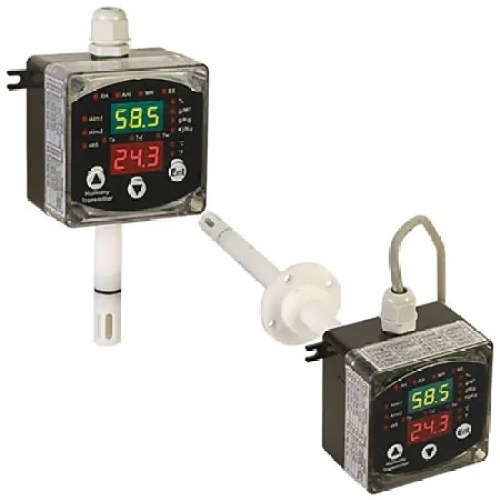

Omega HX401D Relative Humidity Transmitter with LED Display
Normally In Stock
Code: 804361
Omega HX401D Relative Humidity Transmitter with LED Display
Condition: New
Usually ships Same Day or Next Day$1360.28
Sale Price
$1133.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Omega HX401D Relative Humidity Transmitter with LED Display
Specifications
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
4-20 Ma
Conditioner Output Signal Type
Current
Conditioner Output Signal Type
Voltage
Manufacturer
Omega Engineering
Component
Relative Humidity Transmitter
Conditioner Supply Voltage
12-32 Vdc
Conditioner Input Signal Type
Thermocouple Type E
Features
Single and Dual Output Models Available
Single Channel 4 - 20 mA Output for RH
Dual Channel 4 - 20 mA Outputs for RH and Temperature
Two Points Field Calibration
Accuracy±0.02 mA
Accuracy DetailAccuracy @ 23°C and Scaleable Measurement Range: Without field Calibration
Calibration OptionFront 3 pushbutton with dual high bright 3-digit LED module
Data InterfaceN/A
Dew Point Temperature, Max2 °C
Dew Point Temperature, Min-2 °C
Display TypeDual 3 Digit LED (Green)
Electrical Output4 to 20 mA
Enclosure RatingsIP40, IP65, NEMA Type 4
FilterStainless Steel wire mesh
0.05 mm
Height56 mm
Length80 mm
Materials, WettedPolycarbonate, POM
Current, MaxDual 4 to 20 mA
Media CompatibilityAir, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen
Operating Temperature, Max100 °C
Operating Temperature, Min-40 °C
Pressure, Min0 psi
Probe Diameter15.5 mm
Reading Rate1 /sec
Relative Humidity0 to 100% RH
Relative Humidity Accuracy± 2% RH
Repeatability± 1% RH
Resolution0.1% RH
Response Time10 sec
Supply Power NoteLoop Power: 12 to 32 Vdc
dual 4 to 20 mA loop current
reverse polarity protected (Vloop = 24 Vdc, Tamb = 23 ± 2°C, Rload = 250 Ω)
Supply Power TypeLoop Powered
Supply Voltage12 to 32 Vdc
Temperature Measurement, Max70 °C
Temperature Measurement, Min-20 °C
Weight250 g
Wet Bulb Temperature, Max80 °C
Wet Bulb Temperature, Min-20 °C
Width110 mm
