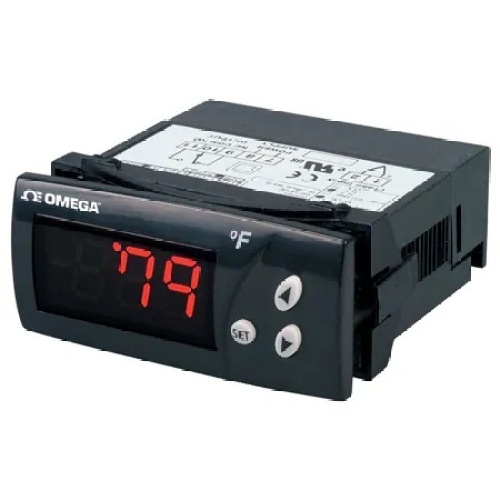

Omega DP3002-KC1 Thermocouple Digital Panel Meter
Normally In Stock
Omega DP3002-KC1 Thermocouple Digital Panel Meter
Condition: New
Usually ships Same Day or Next Day$689.53
Sale Price
$574.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Thermocouple Digital Panel Meter, 1/8 DIN, 4 1/2 Digit, 7-Segment LED Display, AC Supply, K Type -105 °C to 1248 °C I/P, 1 mV Analog, 4.7 Vdc & -4.7 Vdc O/P, DP3002 Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Thermocouple Digital Panel Meter
Features
J, K or T Thermocouple Input
0.05 deg/deg Cold-Junction Error
-138 to 1248°C Range
Five-Segment Linearization
A/D ConversionDual-slope technique
Accuracy± 1.5 °C (± 2.7 °F) + 1 count
CalibrationIEC 584-1 (IPTS-68)
Cutout Dimensions45 x 92 mm
Depth Behind Panel104 mm
Digital I/O NoteLevel: TTL or 5V CMOS compatible
Display Size14.2 mm (0.56 in)
Display Type4.5 Digit LED
Display Type NoteSymbols: -1.8.8.8.8
Decimal Points: Four positions programmable by jumpers behind the lens or at connector
Overrange Indication: Four least-significant digits flash
Enclosure MaterialPolycarbonate
Enclosure RatingsIP65, NEMA Type 4
Form factor1/8 DIN
Front Bezel96 W x 48 H x 5.1 D mm
Input ConfigurationSingle-ended
Lead Resistance, MaxType K: 50 µdeg/deg/Ω, up to 2000 Ω, Current Break: 300 nA
Noise RejectionNMR, SIG HI to SIG LO: 70 dB, 50/60 Hz
CMR, ANA GND to PWR GND: 120 dB, DC to 60 Hz
CMV, ANA GND to PWR GND: 1500 Vp per HV test, 354 Vp per IEC spacing
Operating Temperature, Max60 °C
Operating Temperature, Min0 °C
Output ConfigurationsAnalog Current/Voltage
Output Configurations NoteVoltage: 1 mV/deg
Calibration Error: ±1.5 mV on °C, ±2.7 mV on °F
Current: 1 mA max
Source Resistance: 68 Ω
PolarityBipolar
Power Consumption3.7 W
Reading Rate2.5 samples/sec
Relative Humidity95% at 40°C (non-condensing)
Sensor Break DetectionPositive overrange (upscale)
Sensor/Transmitter Power4.7 Vdc and -4.7 Vdc ±5%, 10 mA max
Step Response1 sec
Storage Temperature, Max85 °C
Storage Temperature, Min-40 °C
Supply Power NoteAC Voltages: 115 or 230 Vac ±15%
AC Frequency: 49 to 440 Hz
DC Voltages: 9 to 32 Vdc, isolated to 300 Vp
26 to 56 Vdc, isolated to 300 Vp
Power Consumption: 2.5 W
Supply Voltage9 to 56 Vdc, 115 to 230 Vac
Temperature Coefficient±0.05 deg/deg
Temperature Measurement Range-105 to 1248°C
Thermal Span Effect±0.01% of reading/°C
Warm-Up to Rated Accuracy20 min
Weight425 g
