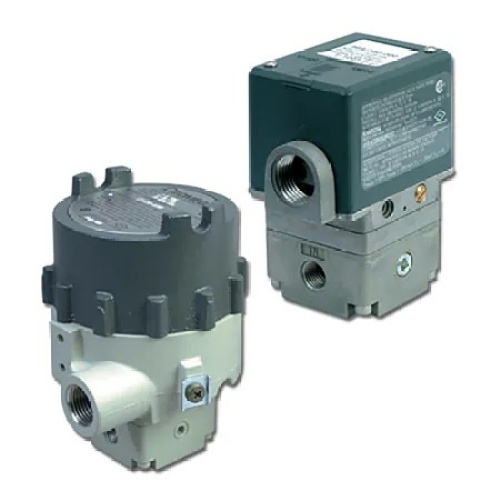

Hazardous Locations and Intrinsically Safe Ratings

NEMA 4X (IP65)

0.1% Accuracy Typical

Closed Loop Pressure Feedback Control

Accuracy± 0.1 %

Accuracy Detail±0.25% of output span

Ambient Temperature Effect, Max±0.022% of nominal span per ºF

ApprovalsFM, CSA

Electrical Connection1/2 in NPT Female Conduit

Enclosure RatingsIP65, NEMA Type 4X

Hazardous ClassificationVmax = 30 Vdc, Imax = 100 mA, Ci = 0 µF, Li = 0 mH T4 Max. Ambient 70°C. Voc and Isc of a barrier shall not exceed Vmax and Imax of the transducer. (Li + wiring) and (Ci + Cwiring) shall not exceed La and Ca of a barrier. A barrier is not necessary when the transducer is in any of these locations.

Hysteresis±0.1%

Impedance6000 Ω

Input Control SignalN/A

Loop Voltage Drop NoteLess than 10 Vdc drop at 20 mA Less than 10 Vdc drop at 50 mA

Material Construction OptionCSA Approved and FM Approved

Media CompatibilityAir

Operating Temperature, Max71 °C

Operating Temperature, Min-29 °C

Process Connection Size1/4 in

Process Connection TypeNPT Female

Repeatability±0.01%

Repeatability Note±0.10% of output span

Span, Max0.00013

Span Note0.013% of calibrated span per ºF, 0.022% of calibrated span per ºF

Storage Temperature, Max93 °C

Storage Temperature, Min-40 °C

Supply Power NoteSupply Voltage, E/P Transducer: Intrinsically Safe/Non-Incendive: 9 to 28 Vdc, less than 20 mA General Purpose: 9 to 40 Vdc, less than 20 mA

Supply Pressure, Max100 psi

Supply Pressure SensitivityNo effect

Supply Voltage9 to 40 Vdc

Total Air Consumption0.07 SCFM

Total Air Consumption Note0.07 SCFM (2 LPM) maximum

VibrationLess than 0.5% of span per 1 g 5 to 2000 Hz, 3 g maximum, 3 axes
