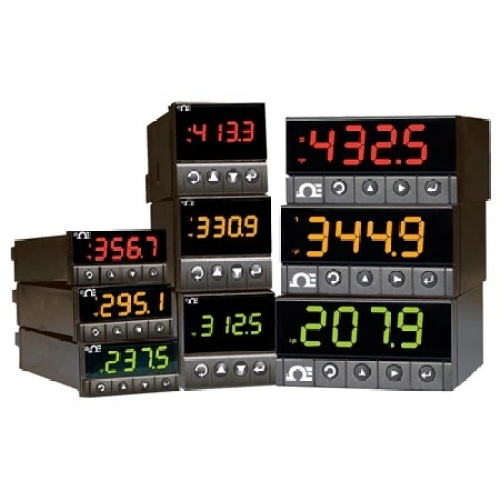

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Omega CNI8-AL-DC Temperature & Process Limit Controller
Normally In Stock
Code: 802990
Omega CNI8-AL-DC Temperature & Process Limit Controller
Condition: New
Usually ships Same Day or Next Day$682.66
Sale Price
$568.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Temperature & Process Limit Controller, 1/8 DIN, 4 Digit, 9-Segment LED Display DC Supply, Universal I/P, 2 SPDT Relay O/P, 12 Vdc to 36 Vdc, High Accuracy, CNi-AL Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Temperature & Process Limit Controller
Features
CE and UL Rated
Universal Inputs
High Accuracy
2 Relay Alarm Outputs
Accuracy± 0.5 °C
Accuracy Detail±0.5°C temperature
0.03% rdg
Additional Features 1Simplified Alarm Menus, Manual Reset
Control Output2 SPDT Relays - Form C Relay
DIN Rail Size0.0625 mm
Display Type4 Digit LED
Height48 mm
Impedance Input10 MΩ for 100 mV, 1 MΩ for 1 or 10 Vdc
Input ConfigurationFront panel configurable
Input Current0 to 20 mA
Input TypeThermocouple, RTD, mA, Voltage
Lead Resistance, Max100 Ω
Length127 mm
Number of Inputs1
Number of Outputs2
Operating Temperature, Max55 °C
Operating Temperature, Min0 °C
Output DetailSPDT, 250 Vac or 30 Vdc @ 3 A (resistive load)
Voltage Excitation: 24 Vdc @ 25 mA (not available with low power option)
Reading Rate3/sec
Relative Humidity0.9
Supply Power NoteVoltage Input: 0 to 100 mV, 0 to 1V, 0 to 10 Vdc
Power: 90 to 240 Vac ±10%, 50 to 400 Hz, 110 to 300 Vdc, equivalent voltage
Low Voltage Power Option: 24 Vac, 12 to 36 Vdc
external power source must meet safety agency approvals
Temperature Sensor TypeThermocouple
Temperature StabilityRTD: 0.04°C/°C,Thermocouple @ 25°C (77°F): 0.05°C/°C, cold junction compensation,Process: 50 ppm/°C
Width48 mm
