Output 1 - Humidity

Output 2 - Temperature

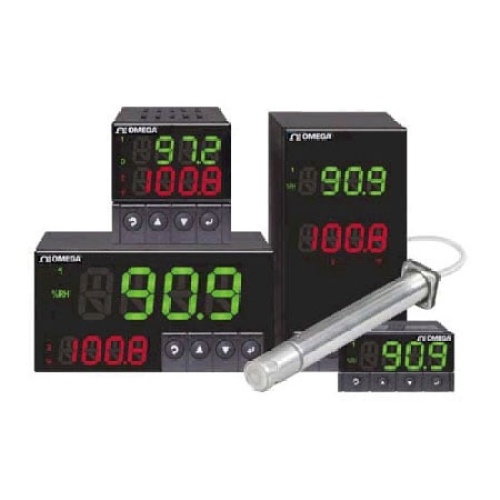

4 Popular DIN Sizes

Ethernet and Serial Communications (optional)

A/D ConversionA/D Conversion: 12-bit RH and 14-bit temp Reading,Rate: 2 samples per sec max,Digital Filter: Programmable Decimal Selection: None, 0.1 for temperature and humidity

Display Type NoteDisplay: 4-digit, 9-segment LED i32, i16D, i8DV: 10.2 mm (0.40") i8: 21 mm (0.83") i8DH: 10.2 mm (0.40") and 21 mm (0.83") RED, GREEN and AMBER programmable colors for process variable, setpoint and temp units

Input NoteInput Accuracy/Range @ 25C - Non-condensing: ±3% for 10 to 90%

±3.5% for 5 to 10% and 90 to 95% ±4% for 0 to 5% and 95 to 100% Hysteresis: ±1% RH Non-linearity: ±3% Temperature Accuracy/Range* ±0.5°C for 5° to 45°C (±1°F for 41 to 113°F)

up to ±1.5°C for -40° to 5°C and 45° to 124°C (up to ±2.7°F for -40° to 41°F and 113° to 255°F) Resolution: 0.1%, 12bit for RH

0.1°C, 14 bit for temperature Response Time: 8 seconds, tau 63% for RH

5 to 30 seconds, tau 63% for temperature *Note: Extended temperature range is for industrial probe only, the controller’s operating temperature is 0 to 50°C.

Input TypeDigital

Measurement TypeTemperature, Humidity

Number of Inputs2

Number of Outputs2

Operating Temperature, Max50 °C

Operating Temperature, Min0 °C

Output Detail2 solid state relays (SSR’s): 0.5 A @ 120/240 Vac continuous

Ramp and SoakSingle Ramp & Soak

Relative Humidity90% RH non-condensing

Samples,Max2/sec
